| Place of Origin: | China |
|---|---|
| Minimum Order Quantity: | 1 set |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T |
| Model NO.: | CQD | Type: | Stacker |
|---|---|---|---|
| Power: | AC Motor | Load Capacity: | 1500kgs |
| Fuel: | Electric | Load Center: | 500mm |
| Lift Height: | 3000~10000mm | Condition: | New |
| Travel Speed(Laden/Unladen): | 9/10km/H | Standard: | CE ISO SGS |
| Battery: | 48V/420ah | Min. Turning Radius: | 2070mm |
| Min. Width Of Right Angle Stacking: | 3250mm | Fork: | 100/30/1070mm |
| Battery Charger: | Free | OEM And Spare Parts: | Available |
| Transport Package: | Standard Sea Freight Packing | Specification: | Steel+PU |
| Trademark: | OMFT | Origin: | China |
| HS Code: | 842710 | Supply Ability: | 1000 PCS/Year |
| Package Size: | 2752.00cm * 1450.00cm * 2600.00cm | Package Gross Weight: | 4300.000kg |

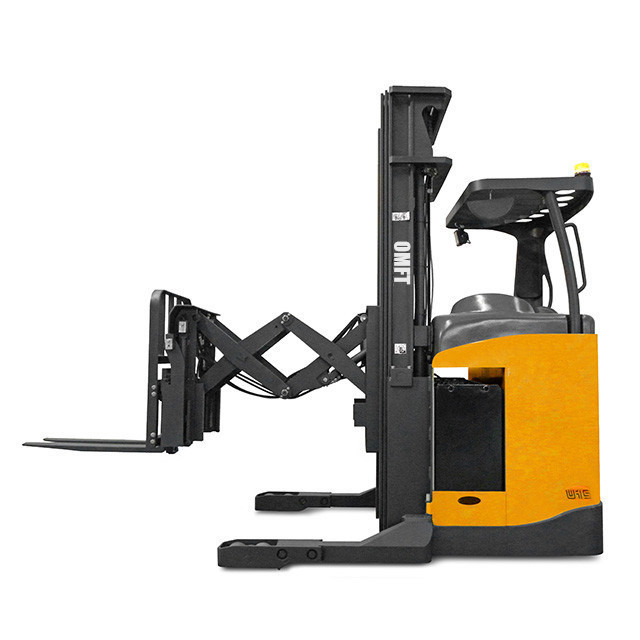

| Manufacturer | OMFT | |
| Model | CQD15S | |
| Power | Battery | |
| Operation | Sit-on | |

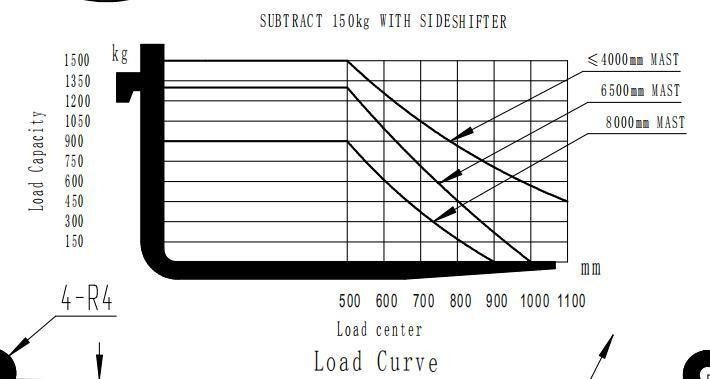

| Rated Load Capacity | Q (kg) | 1500 |
| Load Centre | C (mm) | 500 |
| Lift Height | H3 (mm) | 5000 |
| Free Lift | H2 (mm) | 200 |
| Fork Size (L×W×T) | L/W/T(mm) | 920×120×35 |
| F/B(α°/β°) | Deg | 3°/5° |
| Length (To Fork Face) | L1 (mm) | 2752 |
| Width | B1 (mm) | 1450 |
| Mast Lowered Height | H1 (mm) | 2600 |
| Mast Extended Height (With Backrest) | H4 (mm) | 6045 |
| Overhead Guard Height | H5 (mm) | 2205 |
| Turning Radius | Wa (mm) | 2070 |
| Ground Clearance | H6 (mm) | 50 |

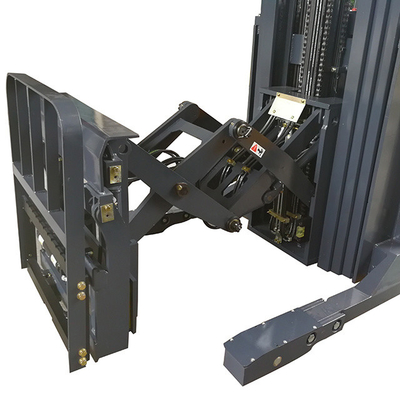

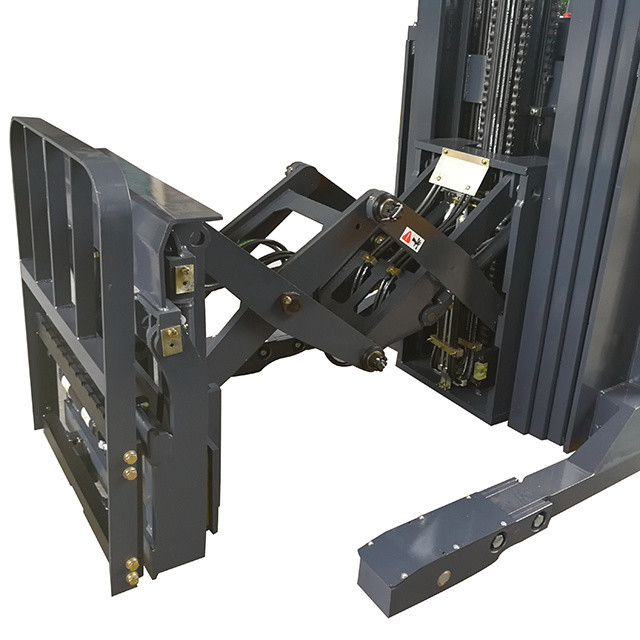

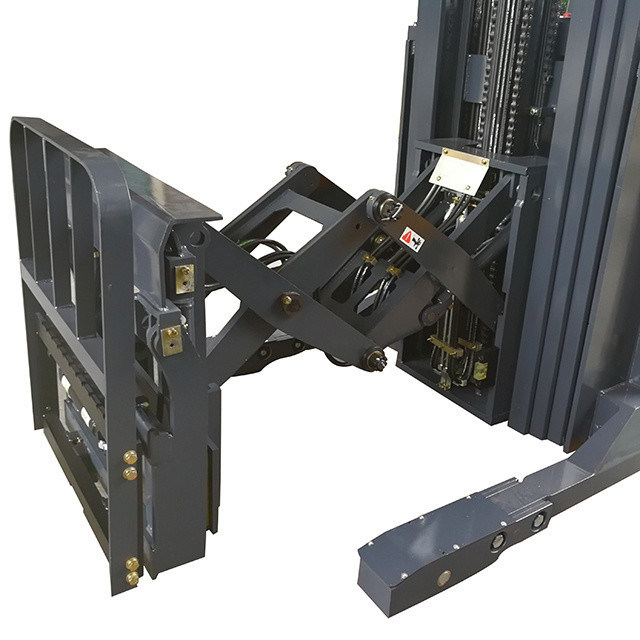

| Fork Carriage Reach Distance | X(mm) | 920 |
| Wheelbase | Y (mm) | 1750 |
| Front Tread | B2 (mm) | 1300 |
| Working Aisle Width With Pallet (1000×1200,1200 Lengthways) | Ast (mm) | 3250 |
| Working Aisle Width With Pallet (800×1200,800 Lengthways) | Ast (mm) | 3325 |
| Working Aisle Width With Pallet(Empty) | Ast (mm) | 3055 |
| Travel Speed (Full Load) | km/h | 9.0 |
| Travel Speed (No Load) | km/h | 9.5 |
| Lifting Speed (Full Load) | mm/s | 240 |
| Lifting Speed (No Load) | mm/s | 360 |
| Total Weight (Contains the battery) | Kg | 4250 |
| Battery Weight | Kg | 756 |
| Front Tyre×2 (Polyurethane) | 125x75x4 | |
| Rear Tyre×1 (Polyurethane) | 343x135 | |
| Diver Motor | Kw | 6 |
| Pump Motor | Kw | 11 |
| Battery (Standard) | V/Ah | 48/420 |
| Steering System | Electronic | |
| Service Brake | Electromagnetic | |
| Controller Type | AC | |
| Controller Manufacturer | ZAPI | |
| Operating Pressure | Mpa | 16 |
