| Minimum Order Quantity: | 1 set |
|---|
| Model NO.: | QSD | Power: | Electric Energy |
|---|---|---|---|
| Load Capacity: | 1-10t | Emission Standard: | Zero Emission |
| Drive Wheel: | 4×2 | Seats: | None |
| Horsepower: | 251-350hp | Engine Capacity: | 4-6L |
| Tire Certification: | ECE, ISO | Tire Design: | Tubeless |
| Condition: | New | The Wheelbase: | 1000mm |
| Steering Mode: | Electronic Power Steering | Brake System: | The Electromagnetic |
| Motor: | AC 1.5kw | Min Turning Radius: | 1280mm |
| Transport Package: | Pallet | Specification: | Steel+rubber |
| Trademark: | OMFT | Origin: | China |
| HS Code: | 842710 | Supply Ability: | 7000 PCS/Year |
| Package Size: | 1711.00cm * 845.00cm * 1345.00cm | Package Gross Weight: | 1100.000kg |

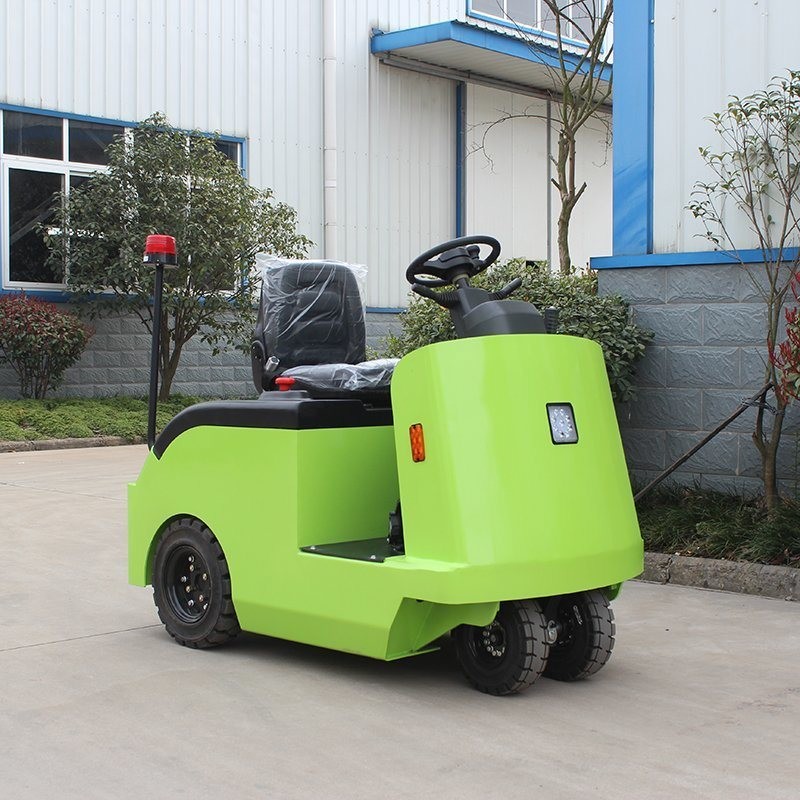

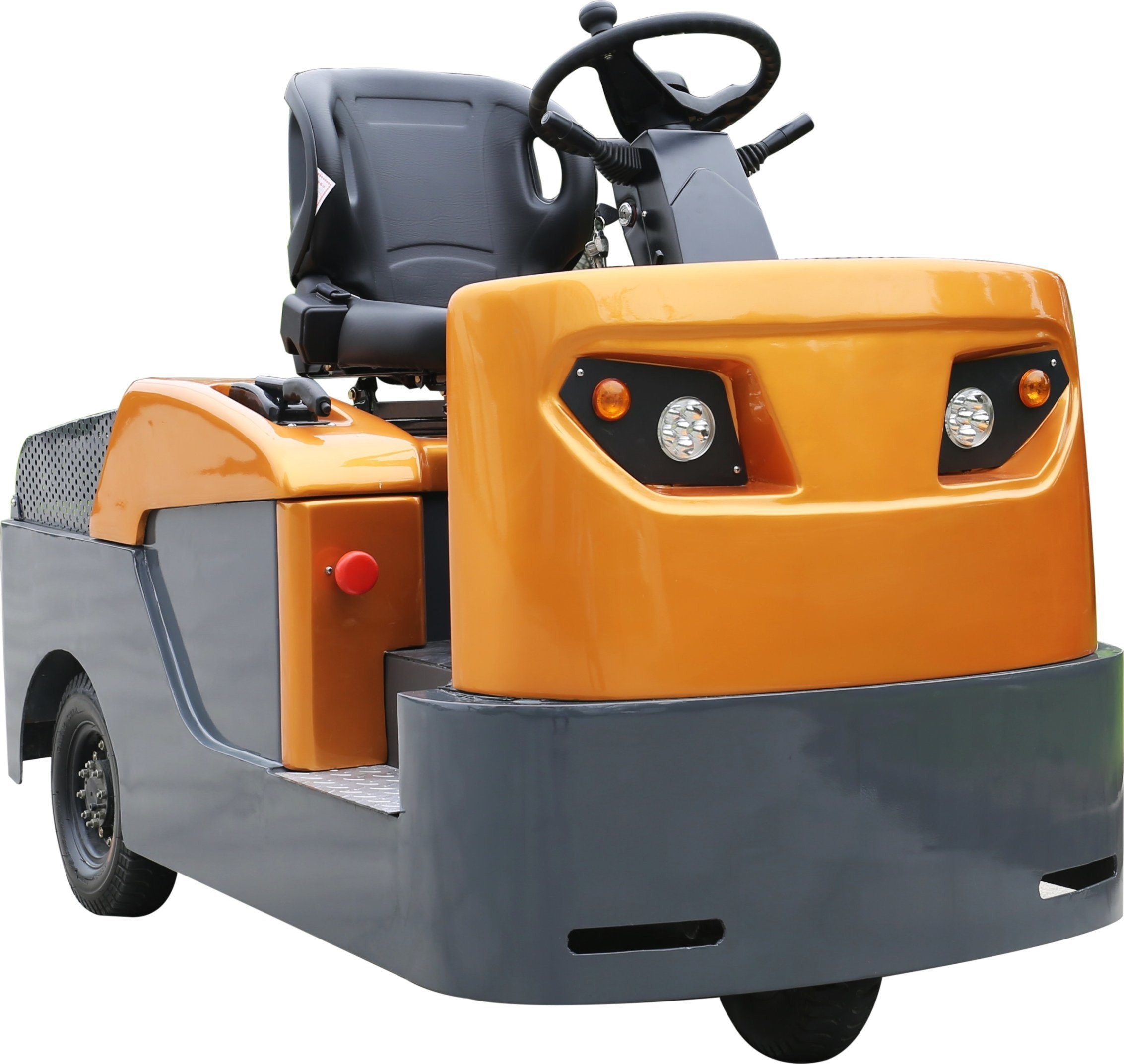

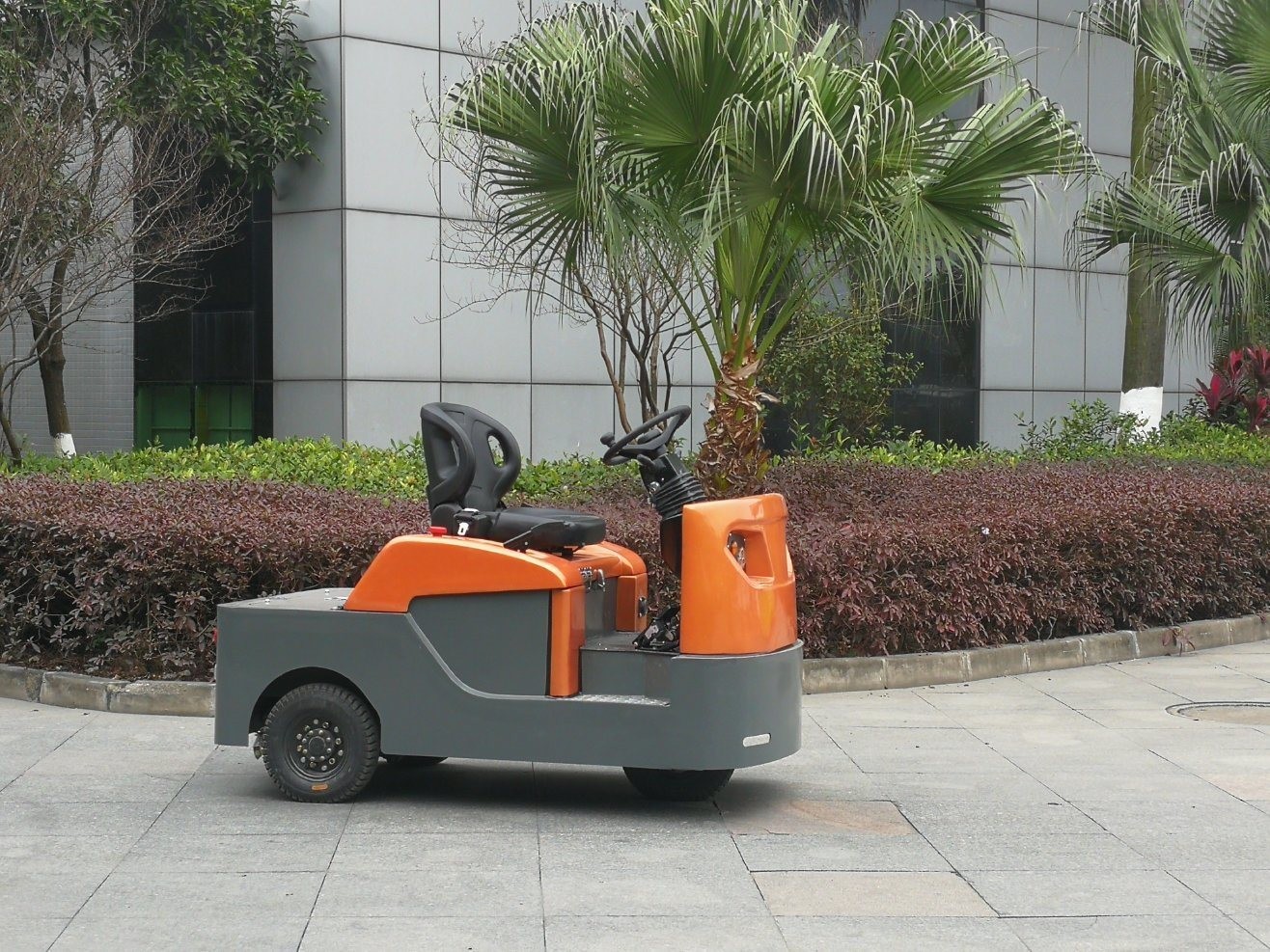

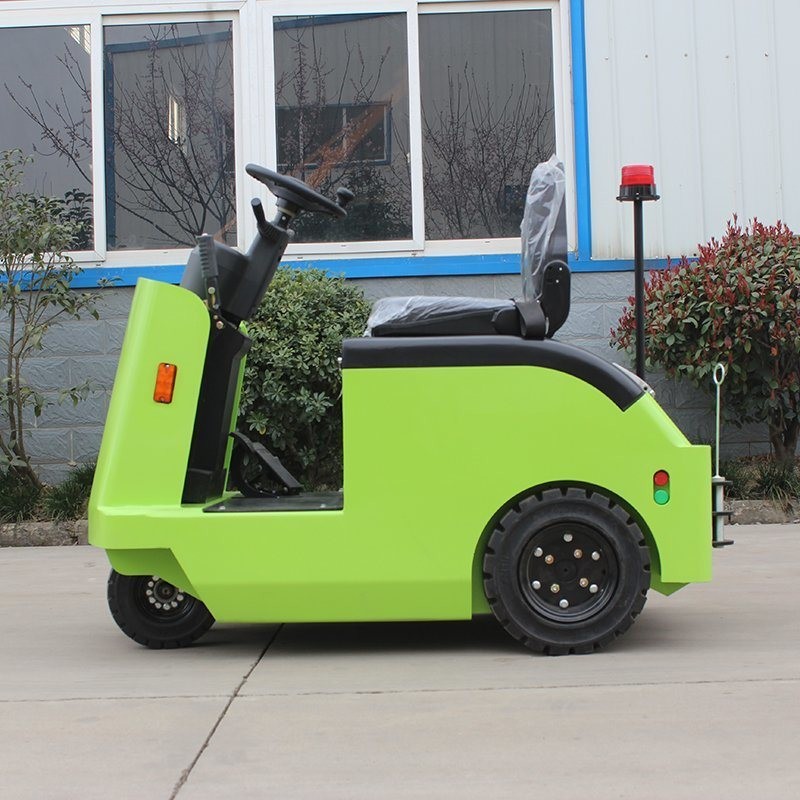

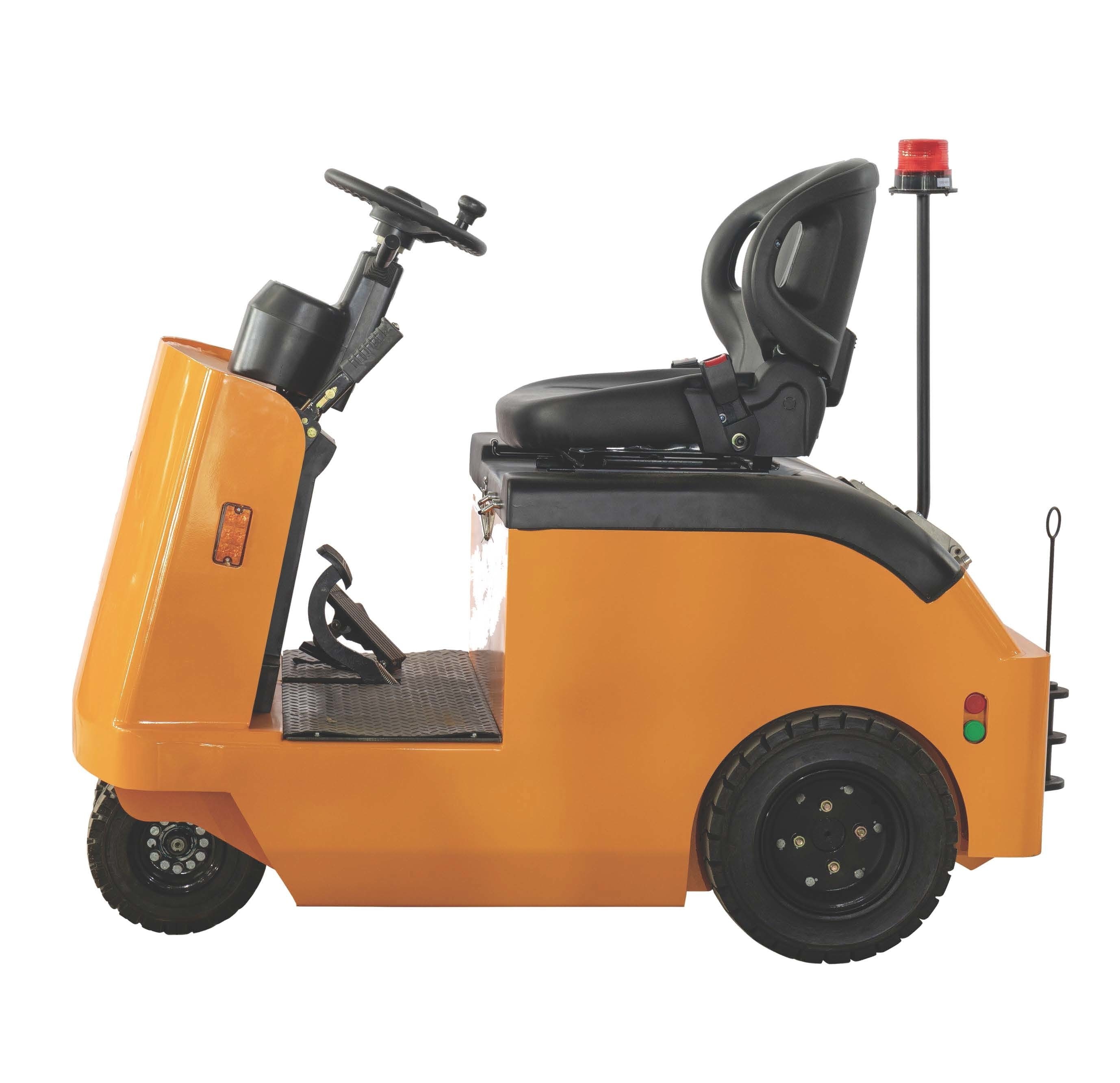

| (Name) | Tow tractor(24V) | |
| (Model No.) | CQD30B | |
| (Capacity) | Kg | 3000 |
| (Operation type) | seated | |
| (Power type) | (Electric) | |
| (Wheel type) | solid rubber | |
| (Maximum traction weight) | KG | 3000 |
| (Max.traction) | N | 3000N |
| (The vehicle height) | H2(mm) | 1345 |
| (Overall length ) | L(mm) | 1711 |
| (Overall width) | S(mm) | 845 |
| (Max travel speed) | Km/h | 6/8 |
| (Wheelbase) | mm | 1040 |
| (Turning guards) | Wa(mm) | 1390 |
| (Battery weight) | KG | 205 |
| (Steering type) | Electric Power Steering | |
| (Parking brake type) | Manual/Pedal | |
| (Body weight) | KG | 880 |
| (Front wheel) | mm | Ø295*96 |
| (Rear wheel) | mm | Ø415*112 |
| (Battery capacity) | V/Ah | 24/240 |
| (charger) | V/Ah | 24/30 |
| (Drive motor) | Kw | 2.5 |
