| Place of Origin: | China |
|---|---|
| Minimum Order Quantity: | 1 set |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T |

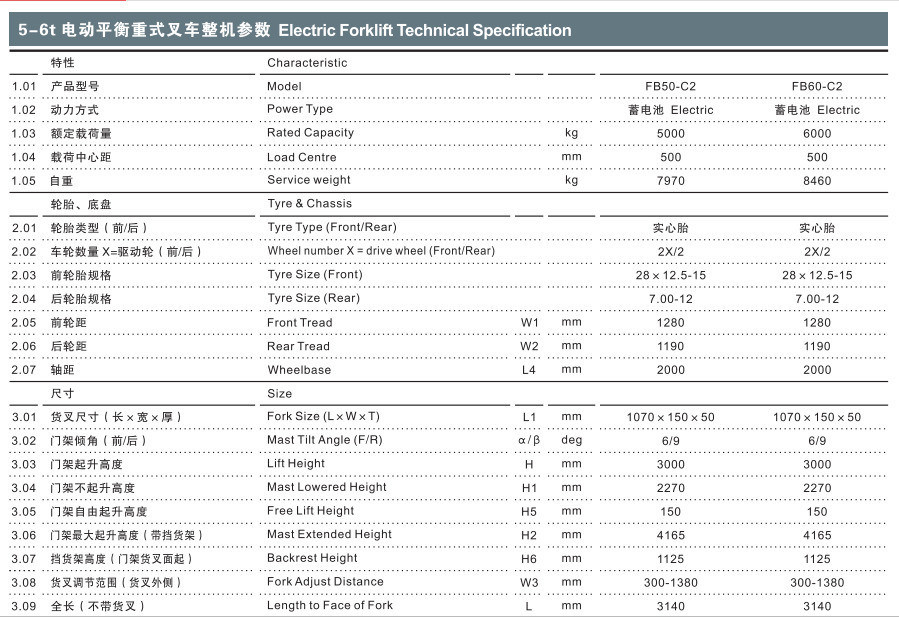

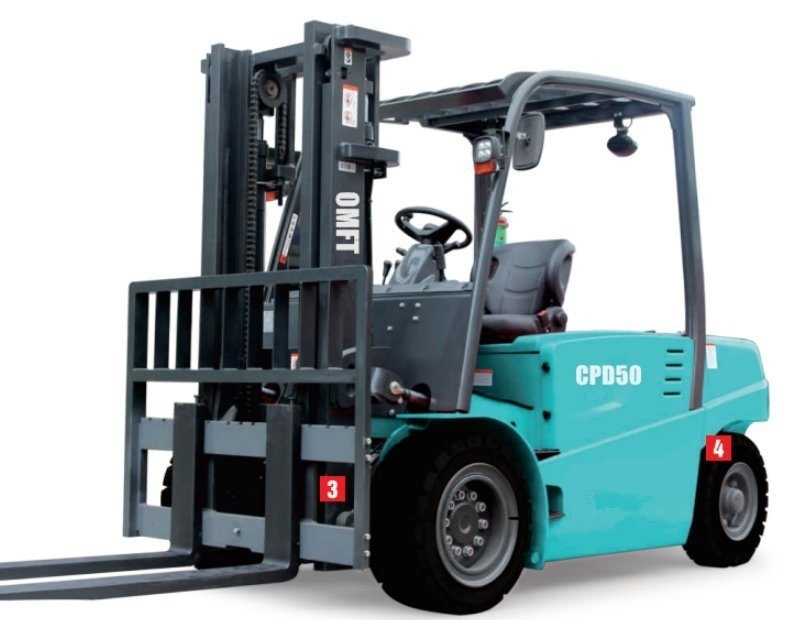

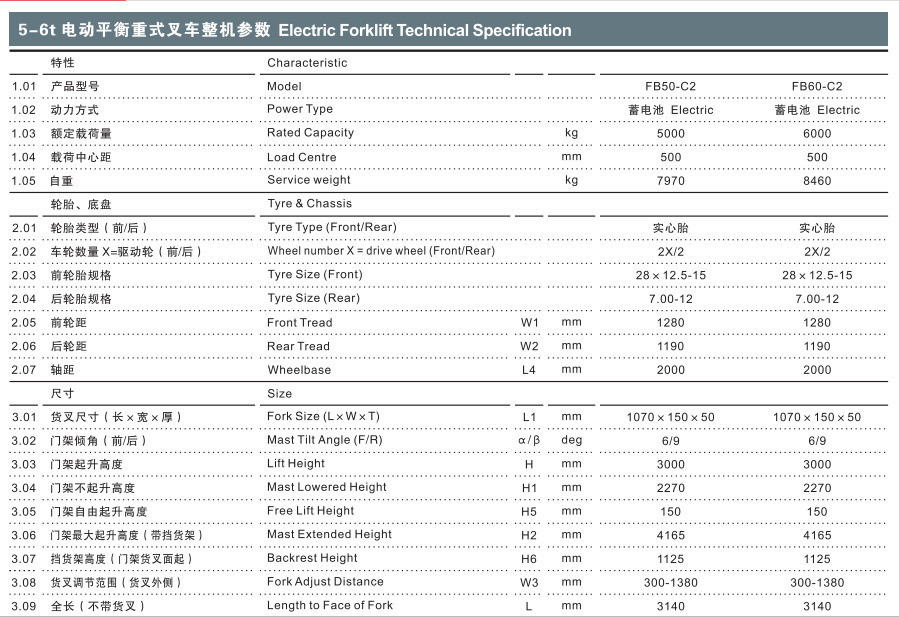

| Model NO.: | CPD50/60 | Type: | Electric Forklift |
|---|---|---|---|
| Power: | AC Motor | Load Capacity: | 5000/6000kgs |
| Fuel: | Electric | Load Center: | 500mm |
| Lift Height: | 3000~7000mm | Condition: | New |
| Standard: | Ce ISO SGS | Fork: | 1220mm |
| Tyre: | Pneumatic Or Solid | Control: | Curtis Zapi Sme |
| Battery: | 80V/700~800ah | Capacity: | 5000kgs |
| Battery Charger: | Free | OEM And Spare Parts: | Available |
| Transport Package: | Standard Sea Freight Packing | Specification: | Steel+rubber |
| Trademark: | OMFT | Origin: | China |
| HS Code: | 842710 | Supply Ability: | 1000 PCS/Year |
| Package Size: | 3140.00cm * 1500.00cm * 2500.00cm | Package Gross Weight: | 6000.000kg |
| Model No. | CPD15 | CPD20 | CPD25 | CPD30 | |
| Power Type | |||||
| Operation Type | |||||
| Capacity | Q(kg) | 1500 | 2000 | 2500 | 3000 |
| Load Center | C(mm) | 500 | 500 | 500 | 500 |
| Front Overhang | X(mm) | 447 | 447 | 495 | 495 |
| Wheelbase | Y(mm) | 1460 | 1460 | 1600 | 1600 |
| Total Weight(with Battery) | kg | 2850 | 3260 | 4210 | 4410 |
| Wheel Type | |||||
| Front Wheel | 6.50-10 | 6.50-10 | 23×9-10 | 23×9-10 | |
| Driving Wheel | 5.00-8 | 5.00-8 | 18×7-8 | 18×7-8 | |
| Front Wheel Base | b10(mm) | 910 | 910 | 970 | 970 |
| Rear Wheel Base | b11(mm) | 930 | 930 | 980 | 980 |
| Mast Lowered Height | h1(mm) | 2095 | 2095 | 2095 | 2095 |
| Free Lift Height | h2(mm) | 80 | 80 | 80 | 80 |
| Lift Height | h3(mm) | 3000 | 3000 | 3000 | 3000 |
| Max. Height When Lifting | h4(mm) | 4010 | 4010 | 4150 | 4150 |
| Height of Overhead Guards | h14(mm) | 2190 | 2190 | 2185 | 2185 |
| Fork Clearence when Mast Lowered | h13(mm) | 40 | 40 | 45 | 45 |
| Angle of inclination of door frame | ° | 6/10 | 6/10 | 6/12 | 6/12 |
| Overall Length | L1(mm) | 3400 | 3400 | 3600 | 3600 |
| Overall Length(Without Fork) | L2(mm) | 2330 | 2330 | 2530 | 2530 |
| Overall Width | b1(mm) | 1105 | 1105 | 1200 | 1200 |
| Fork Size | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 45/125/1070 | 45/125/1070 |
| Fork Spread | b5(mm) | 244-1042 | 244-1042 | 250-1070 | 250-1070 |
| Min. Ground Clearence | m2(mm) | 130 | 130 | 130 | 130 |

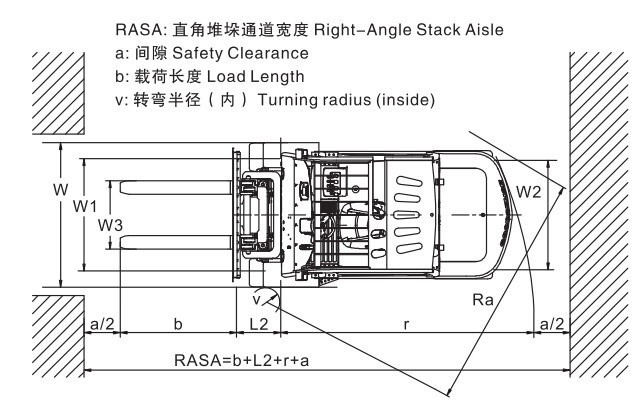

| Aisle Width for Pallet 1000*1200 Crossaway | Ast(mm) | 3857 | 3857 | 4015 | 4015 |
| Aisle Width for Pallet 1000*1200 Crossaway | Ast(mm) | 4015 | 4015 | 4170 | 4170 |
| Min. Turning Radius | Wa(mm) | 2090 | 2090 | 2200 | 2200 |
| Max. Travel Speed(Unload/Load) | km/h | 12/11 | 12/11 | 12/11 | 12/11 |
| Lifting Speed(Unload/Load) | m/s | 0.205/0.221 | 0.196/0.214 | 0.210/0.215 | 0.193/0.212 |
| Decnet Speed(Unload/Load) | m/s | 0.350/0.260 | 0.365/0.240 | 0.365/0.240 | 0.365/0.240 |
| Max. Climbing Ability (Unload/Load) | % | 20/15 | 20/15 | 20/12 | 20/12 |
| Brake Type | |||||
| Driving Motor | kw | 8AC | 8AC | 11AC | 11AC |
| Lifting Motor | kw | 8.6AC | 8.6AC | 12AC | 12AC |
| Lifting Motor | |||||
| Battery Vol./Capacity | V/Ah | 48V400Ah | 48V450Ah | 48V480Ah | 48V550Ah |
| Charger | V/A | 48V/50A | 48V/60A | 48V/60A | 48V/70A |
| #N/A | kg | 645 | 710 | 730 | 850 |
| Control Model | |||||
| The noise level in the driver's ear is based on EN12053 | dB(A) | 75 | 75 | 75 | 75 |
