| Place of Origin: | China |
|---|---|
| Minimum Order Quantity: | 1 set |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T |
| Model NO.: | CPD15A | Lift Height: | 3000~7000mm |
|---|---|---|---|
| Condition: | New | Min. Turning Radius: | 1425mm |
| Min. Width Of Right Angle Stacking: | 2931mm | Standard: | Ce ISO SGS |
| Fork: | 1070mm | Tyre: | Pneumatic Or Solid |
| Control: | Curtis Zapi Sme | Battery: | 24V/300ah |
| Capacity: | 1500kgs | Battery Charger: | Free |
| OEM And Spare Parts: | Available | Transport Package: | Standard Sea Freight Packing |
| Specification: | Steel+rubber | Trademark: | OMFT |
| Origin: | China | HS Code: | 842710 |
| Supply Ability: | 7000 PCS/Year |
| Characteristic | ||

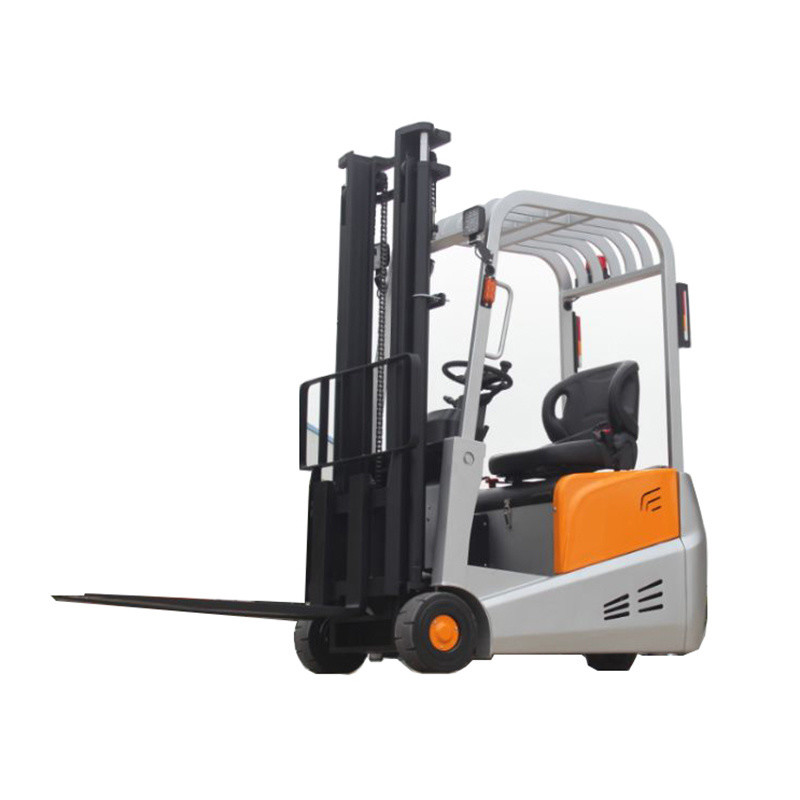

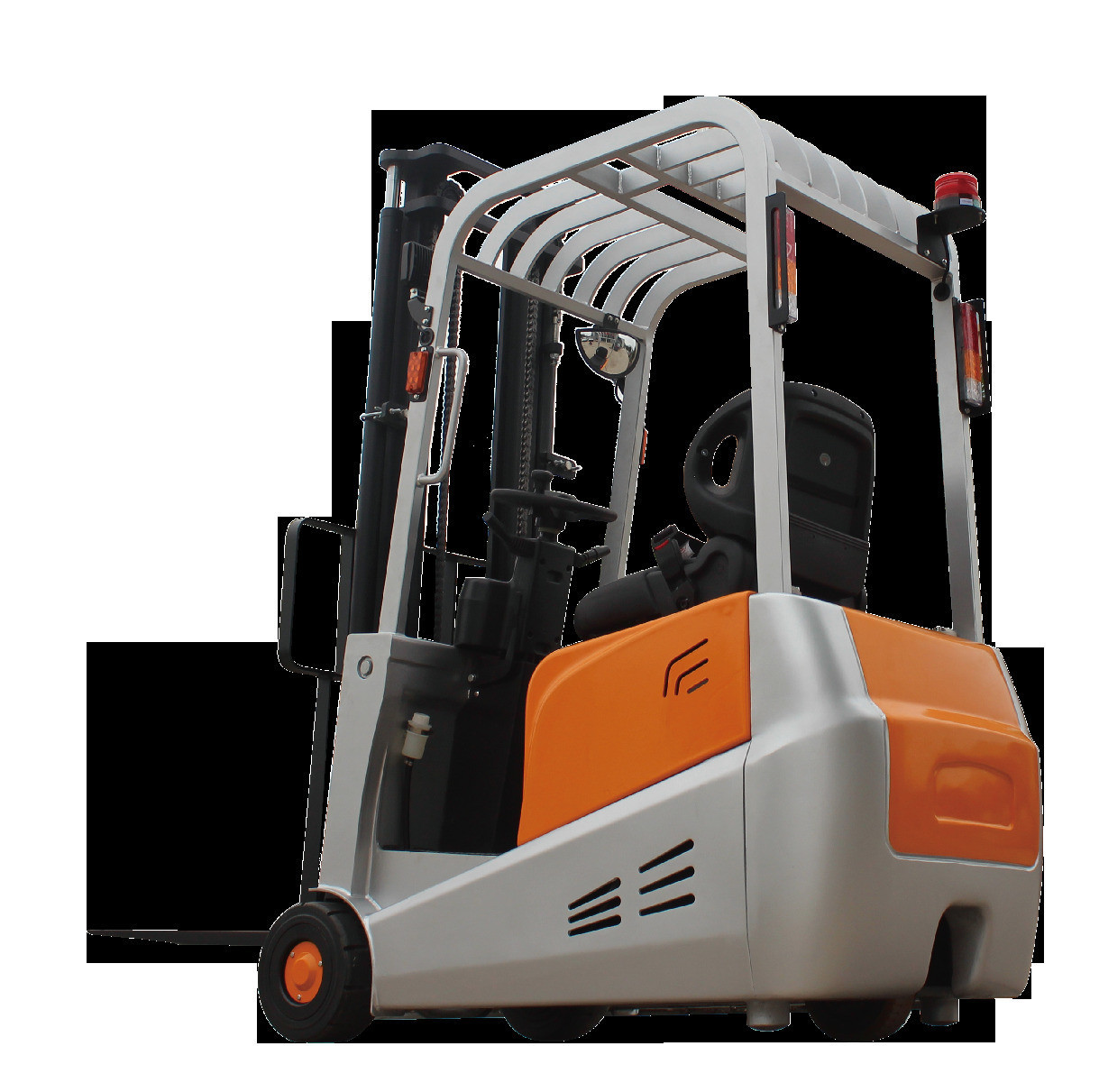

| Name | Unit | 3-wheel Counterbalanced weight electric forklift |
| Model | CPD15A | |
| Power type | Electric | |
| Operation type | Seated type | |
| Load capacity | Q(t) | 1500 |
| Load center | C(mm) | 500 |
| Front overhang | X(mm) | 196 |
| Wheel base | Y(mm) | 1130 |
| Wheel | ||
| Driving wheel size | ∅×w(mm) | 230*75 |
| Bearing wheel size | ∅×w(mm) | 305*127 |
| wheels (x= drive wheel, balance wheel/bearing wheel) | 1X/2 | |
| Dimensions | ||
| Height--Mast Lowered | h1(mm) | 2110 |
| Lifting height) | h3(mm) | 3000 |
| Overall length | l1(mm) | 2657 |
| Length of body | l2(mm) | 1587 |
| Overall width | b1(mm) | 850 |
| Fork dimensions | s/e/l(mm) | 35/100*1070 |
| Fork spread | b5(mm) | 210-566 |
| Min ground clearance | m2(mm) | 85 |
| Channel width,pallet size 1000*1200mm | Ast(mm) | 2931 |
| Minimum turn radius | Wa(mm) | 1425 |
| Performance | ||
| Driving speed, no load/full load | km/h | 5.2/5 |
| Lifting speed, no load/full load | m/s | 135/90 |
| Descending speed, no load/full load | m/s | 85/120 |
Max climbing capacity, no load/full load | % | 8/6 |
| Parking brake | Hydraulic and electromagnetic | |
| Power | ||
| Driving motor | kw | 2.5 |
| Lifting motor | kw | 3 |
| Battery voltage/capacitance | V/Ah | 24V/300Ah |
| Weight | ||
| Self weight including battery | kg | 2150 |
