| Model NO.: | CPQY50 | Lift Height: | 3000~7000mm |
|---|---|---|---|
| Condition: | New | Overall Dimensions: | 3450X2010X2500mm |
| Mast: | 2-Stage Mast/Full 2-Stage Mast/Full Free 3-Stage M | Standard: | Ce ISO SGS |
| Fork: | 1070mm | Tires: | Pneumatic Or Solid |

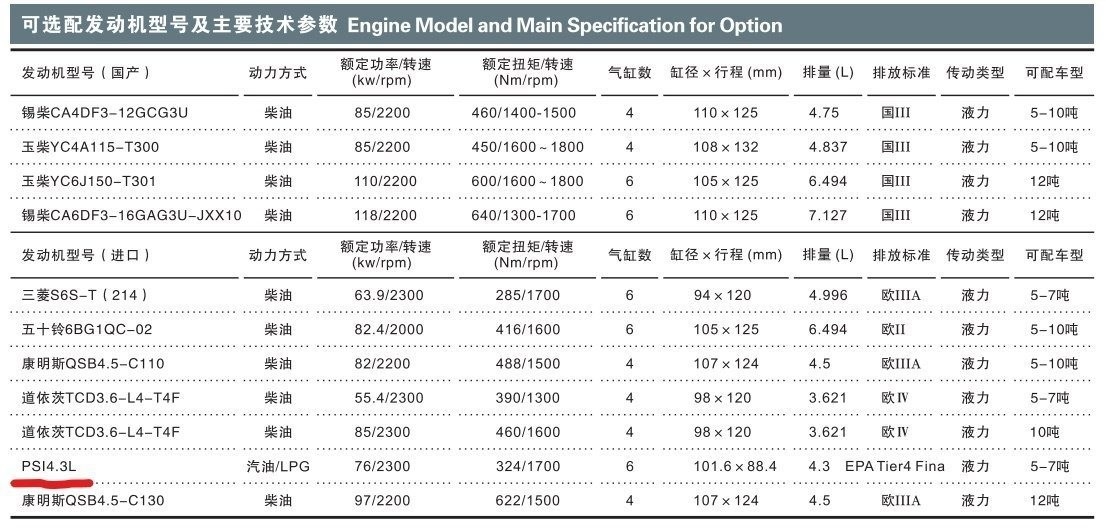

| Engine: | Us GM4.3 Gasoline | Emission Standard: | Euro And Us EPA |
| OEM And Spare Parts: | Available | Attachment: | Cascade/Kaup/Bolzoni/Chinese |
| Color: | Orange/Blue/White | Transport Package: | Standard Sea Freight Packing |
| Specification: | Steel+rubber | Trademark: | OMFT |
| Origin: | China | HS Code: | 842720 |
| Supply Ability: | 7000 PCS/Year |
| Model | FY50 | FY60 | FY70 | ||
| Power Type | LPG | LPG | LPG | ||
| Drive Type | Sit | Sit | Sit | ||
| Load Capacity | kg | 5000 | 6000 | 7000 | |
| Load centre | mm | 600 | 600 | 600 | |
| Tyre | |||||
| Tyre Type | Pneumatic Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| 4X/2 | 4X/2 | 4X/2 | |||
| Front Tyre | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | ||
| Rear Tyre | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | ||
| Overall Dimension | |||||
| Lift Height | mm | 3000 | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1220×150×60 | 1220×150×60 | 1220×150×70 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2500 | 2500 | 2500 | |
| Mast Extended Height(with backrest) | mm | 4415 | 4415 | 4415 | |
| Length to face of fork(Without fork) | mm | 3450 | 3450 | 3560 | |
| Overall Width | mm | 2010 | 2010 | 2010 | |
| Overhead Guard Height | mm | 2470 | 2470 | 2470 | |
