Detail Information

Model NO.:	CPD10	Lift Height:	3000~7000mm
Condition:	New	Min. Turning Radius:	1425mm
Min. Width Of Right Angle Stacking:	2931mm	Standard:	Ce ISO SGS
Fork:	1070mm	Tyre:	Pneumatic Or Solid
Control:	Curtis Zapi Sme	Battery:	24V/270ah
Capacity:	1000kgs	Battery Charger:	Free
OEM And Spare Parts:	Available	Transport Package:	Standard Sea Freight Packing
Specification:	Steel+rubber	Trademark:	OMFT
Origin:	China	HS Code:	842710
Supply Ability:	7000 PCS/Year

Product Description

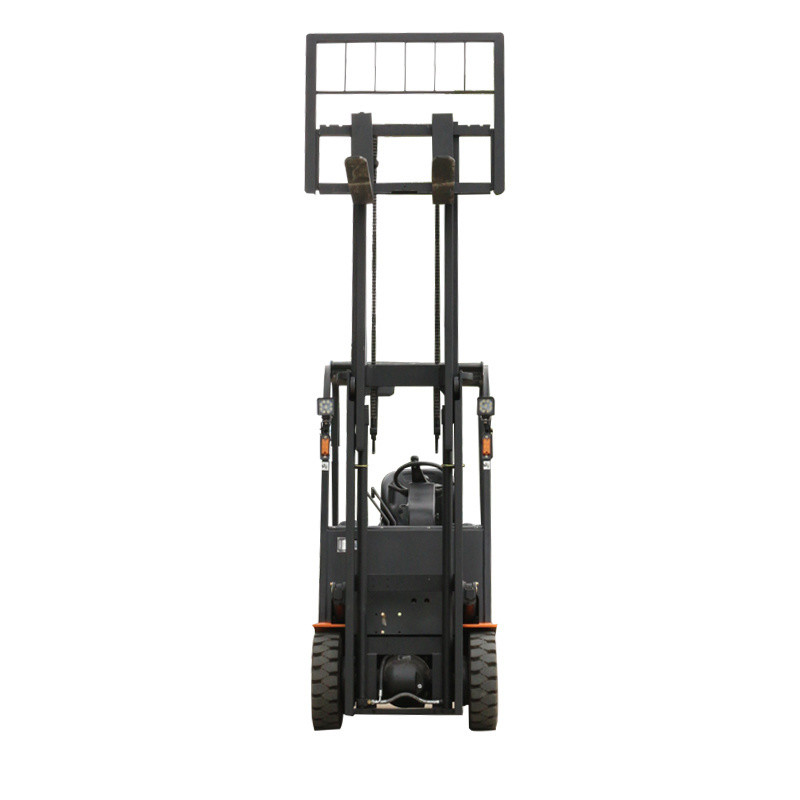

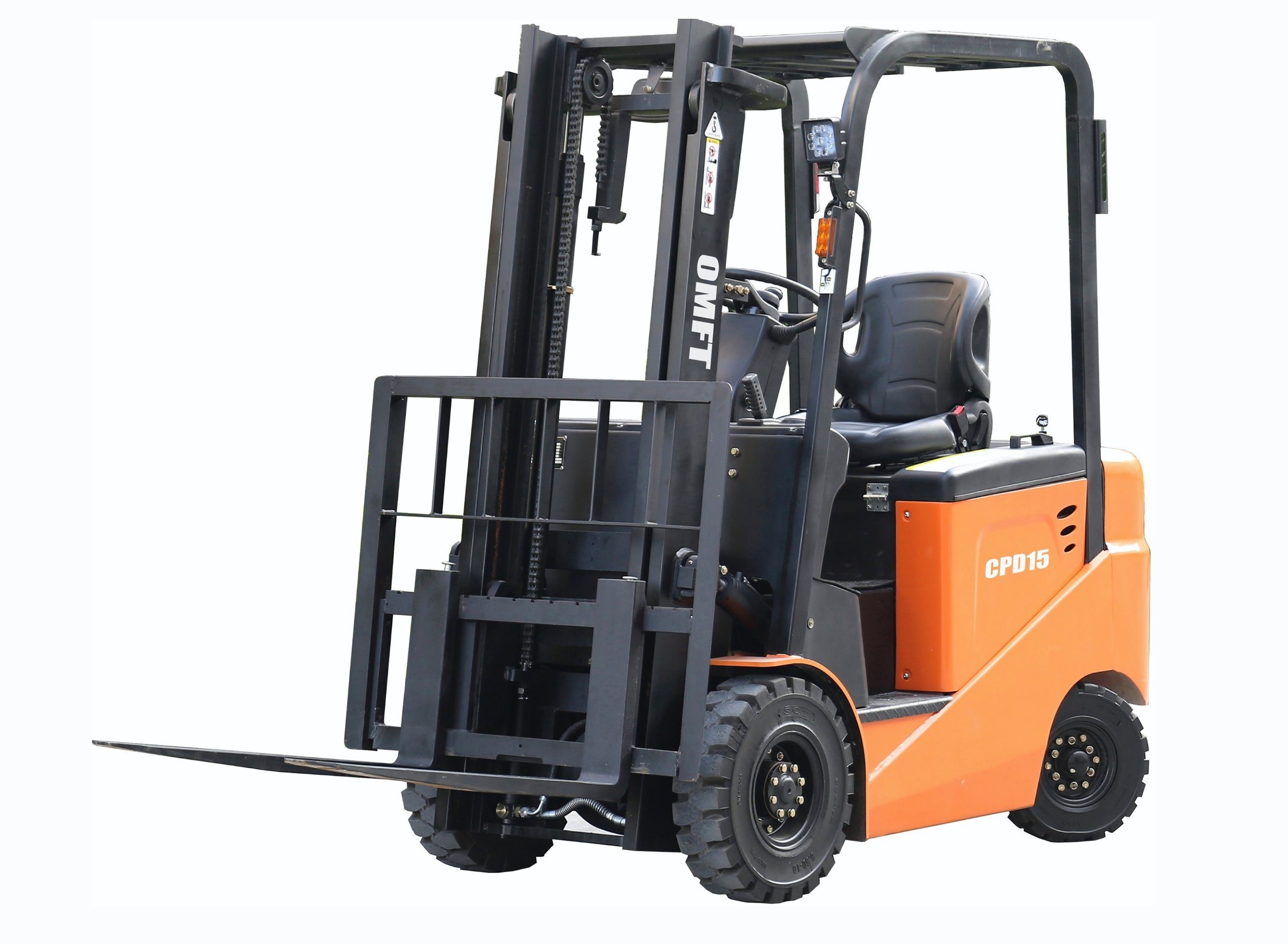

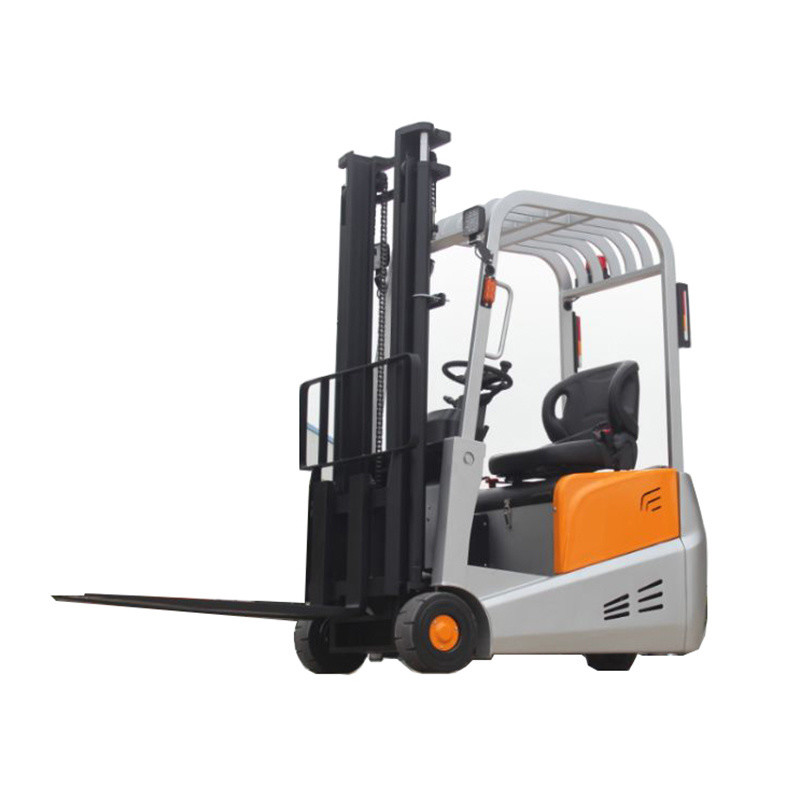

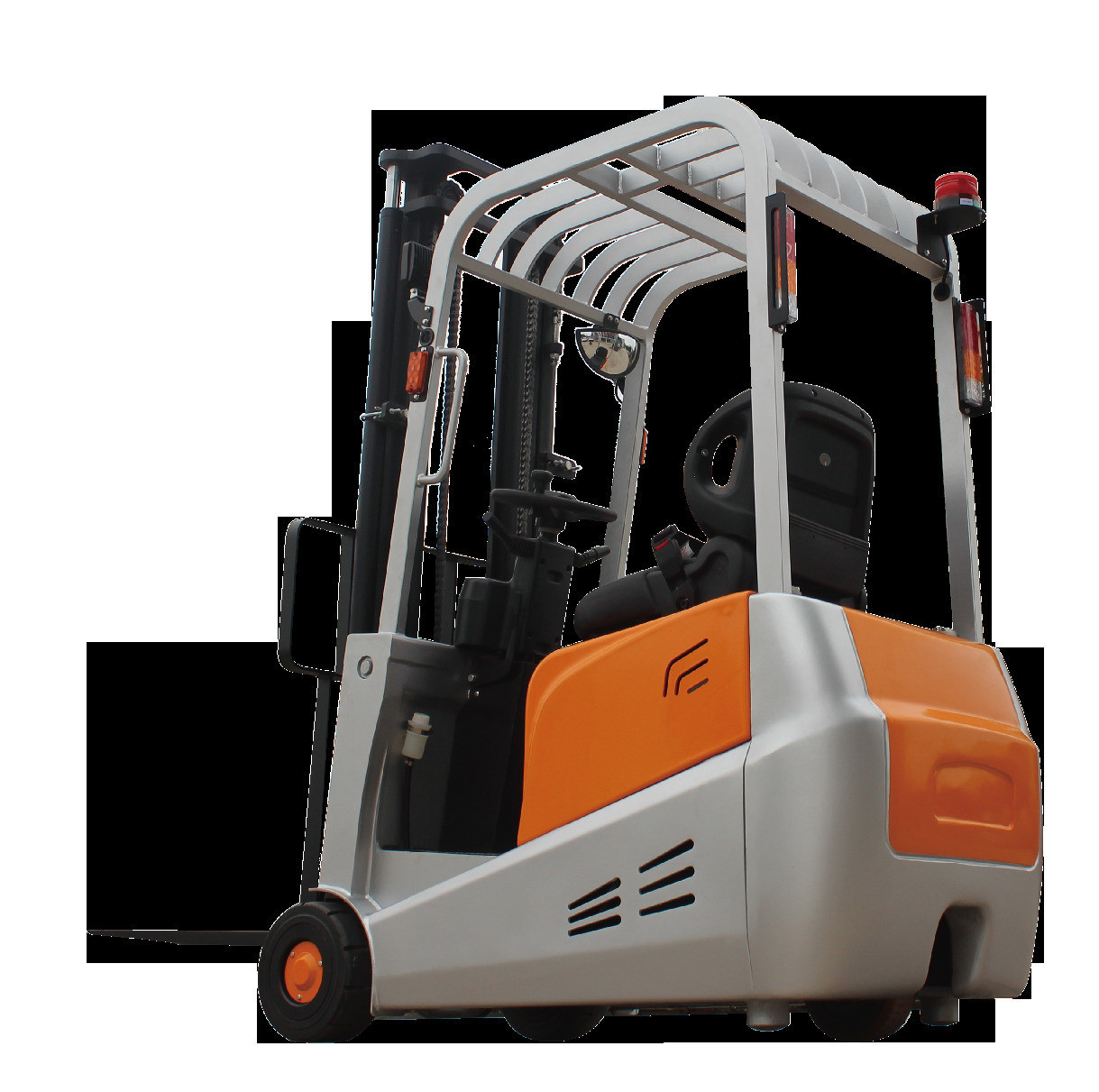

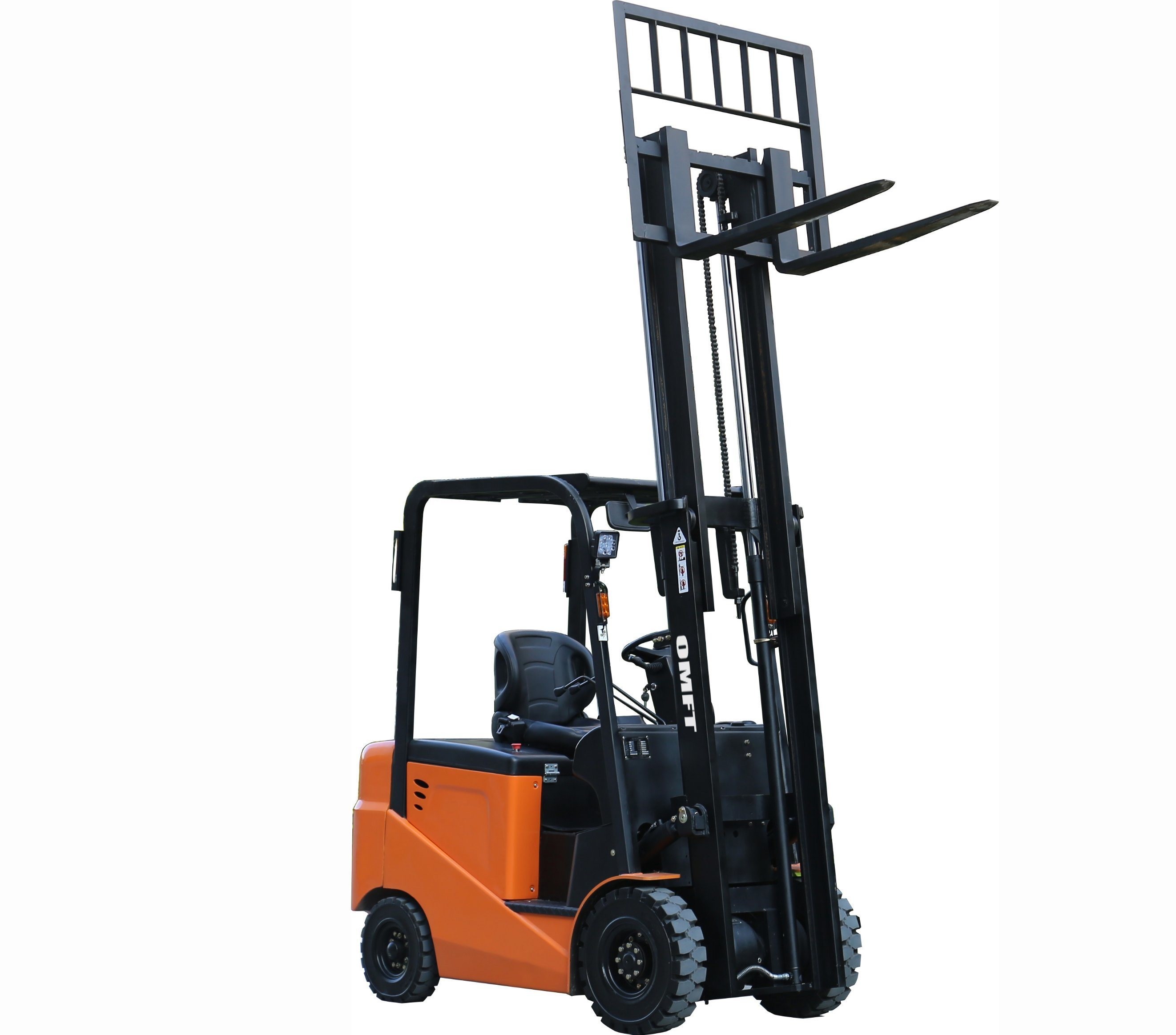

1ton 1000kg CPD10 3-Wheels Smart Mini Battery Counterbalanced Electric Forklift Truck Ce ISO
1Tton 1000kgs smart Electric Forklift with AC Motors

1 Ton 1000kgs Smart Electric Forklift with AC Motors and Versatile Warehouse Solution 0

(Model No.)	unit	CPD10A-30
(Capacity)	Kg	1000
Mast		duplex
(Max lifting height)	H(mm)	3000
(Load center)	C(mm)	500
(Wheel type)	Rubber
(Fork size)	(mm)	107010035
Fork adjust range	(mm)	210-566
(Overall length )	L(mm)	1587
(Overall width)	S(mm)	850
(Height--Mast Lowered)	H1(mm)	2035
(Height--Mast lifted)	H2(mm)	3918
Mast Tile angle		2/4
Over head guard height	H3(mm)	1995
(Turning radius)	WQ(mm)	1425
Min. Width of Right Angle Stacking	(mm)	2931
(Max.Walking Speed)	Km/h	5.0/5.2
(Grade ability)	%	6/8
(Total Weight)	Kg	1780
(Driving wheel)	mm	Ø230*75
(Front wheel)	mm	Ø305*127
(wheel base)	mm	1130
(Battery capacity)	V/Ah	24/270
Charger	V/Ah	24/30
(Driving motor)	Kw	2.5
(Lifting motor)	Kw	2.2

ADVANTAGES:

SME AC controller, integrated control of CAN bus; precise operation, convenient maintenance and stable performance;
Strong power, leading performance in driving, lifting and climbing;
Ergonomic handle&steering wheel design, buttons are easy to operate; better driving comfort;
48V/450Ah large-capacity lead-acid battery,suitable for high using frequency;
Explosion-proof valve is installed at the bottom of the lifting cylinder, even if the oil pipe is broken, the door frame will not fall rapidly;
Integral welding structure of roof guard frame and body, high overall strength;
Small turning radius, Efficient and convenient;
Load sensing hydraulic steering system, lightweight, low noise, more labor-saving;
OPS(operating presence sensing),safer and more user-friendly (optional);
Solid tire, strong bearing capacity;
The whole car is equipped with LED lights, energy saving and high efficiency.

WHY CHOOSE US?
1.Strong production, research and development, after-sales capacity
We have 35, 000 square meters workshop and 100 R&D staff. We have been specializing in the forklift industry for more than 20 years. 20,000 units production capacity per year. OEM is also welcomed.

2.High quality source of raw materials and spare parts
Our spare parts and steel are all from well-known manufacturers at home and abroad with reliable quality. Besides, we are very professional in painting, welding and other production processes. Our products are both excellent in appearance and internal structure.

3.Competitive price and fast delivery
For standard forklift, normally we have them in store. If not, we can finish production within 1 week. Even for high mast and other non-standard forklift,we can finish production within 2 weeks. Our price is transparent and competitive. We are not the cheapest in the market, but we ensure you that our products worth every penny.

4.Professional technical guidance and use training
We have detailed operation instructions and video instructions for each product. If you have any question during the use, please feel free to contact us. We have professional personnel to answer them one by one.

5.Warranty and after-sales service
2000h or 2 years warranty time. Free parts change during warranty time.
Strict quality testing was conducted for each truck before shipping to ensure the safety of users.
In order to ensure our customer has a good using feeling, we send some spare parts for free with every forklift, eg: filters, seal, cylinder, etc.
In future, if customers need any spare parts, we will arrange shipping within 48h.

6.Complete product line
Diesel Forklift:1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 3.8ton; 4ton; 4.5ton; 5ton; 6ton; 7ton; 8ton; 10ton; 12ton; 14ton; 15ton;16ton; 25ton; 28ton; 33ton; 42ton;45ton;48ton.
LPG&Gasoline Forklift :1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton; 7ton.
Electric Forklift: 1ton; 1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton.
Warehouse and material handling equipment: Manual hand pallet truck; electric pallet truck; electric pallet stacker; electric reach stacker; VNA(very narrow aisle) 3way or 4ways stacker; tow tractor; AGV equipments
Aerial platform:Scissor lifting platform 3.9M; 5.8M; 8M;10M;12M;14M
Rough terrain Off-road forklift and side forklift truck: 2ton to 12 ton

7.Logistics
It doesn't matter whether you have import qualification or not, we can solve the logistics problem for you. We have reliable logistics team and can send the goods directly to your warehouse if you need.
Also, we can do FOB, CIF and FCA term as you required.
