12m 11m Side Standing Electric Reach Truck Stacking Forklift Lifting Truck Reach Stacker

Basic Information

Place of Origin:	China

Minimum Order Quantity:	1 set
Delivery Time:	Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms:	LC, T/T

Get Best Price Contact Now

Detail Information

Model NO.:	CQD	Lift Height:	9000~12000mm
Condition:	New	Travel Speed(Laden/Unladen):	10km/H
Standard:	CE ISO SGS	Battery:	48V/750ah
Min. Turning Radius:	1872mm	Min. Width Of Right Angle Stacking:	2912mm
Fork:	1070/100/40mm	Battery Charger:	Free
OEM And Spare Parts:	Available	Transport Package:	Standard Sea Freight Packing
Specification:	Steel+PU	Trademark:	OMFT
Origin:	China	HS Code:	842710
Supply Ability:	1000 PCS/Year

Product Description

1.6ton 2ton 6m 6.5m 7m 7.5m 8m 8.5m 9m 9.5m 10.5m 11.5m 12m Electric Reach Stacker Reach Forklift Battery Stand-on/Seated Electric Forklift Reach Truck

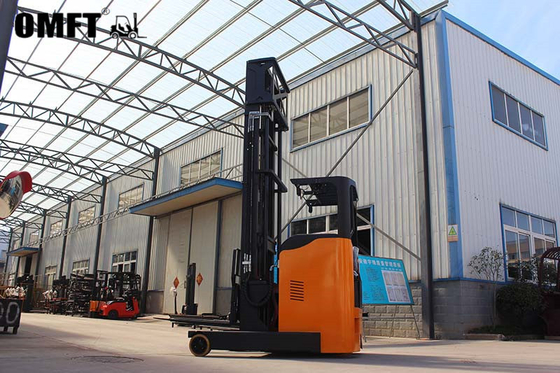

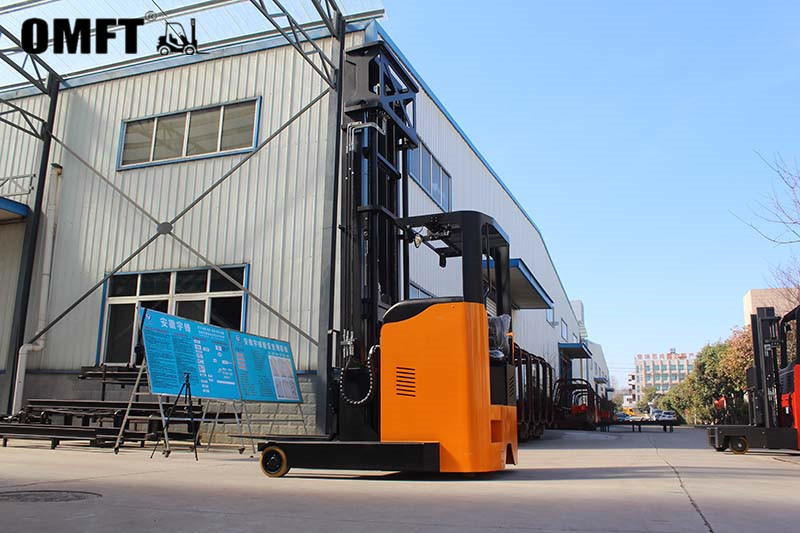

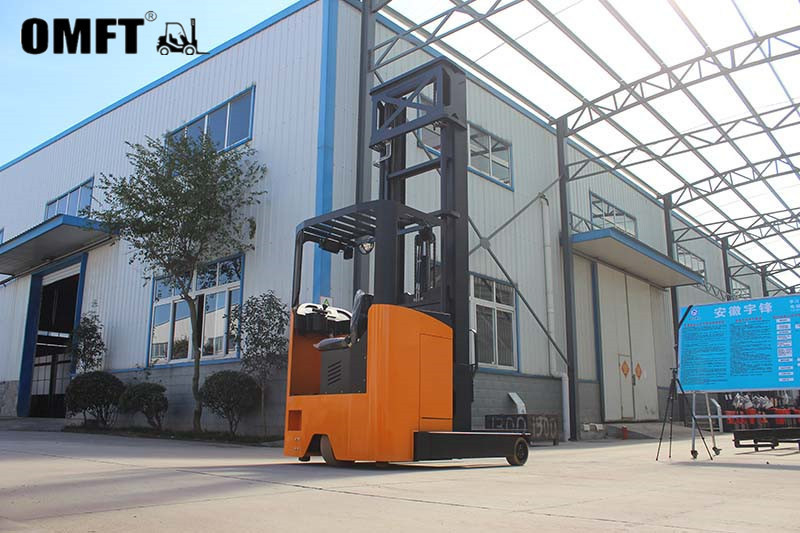

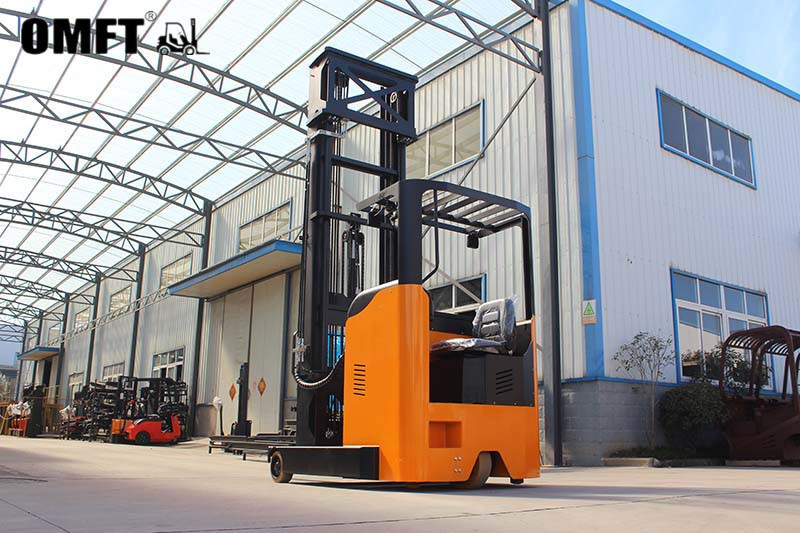

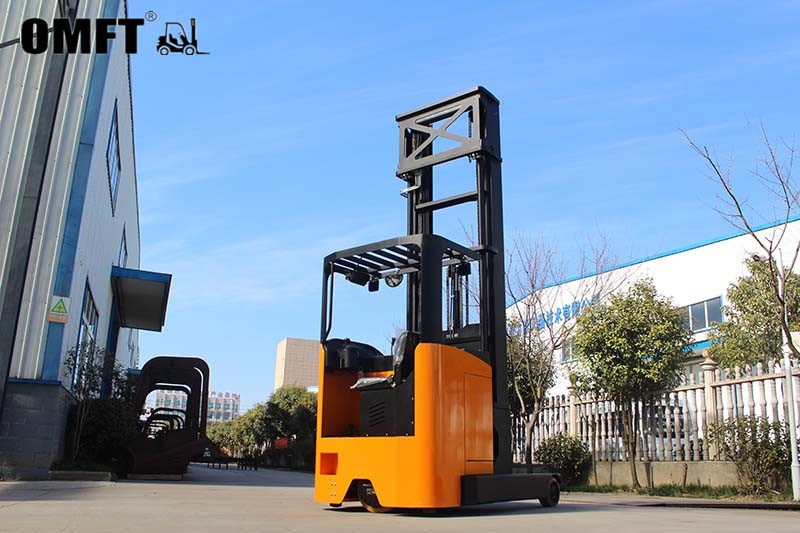

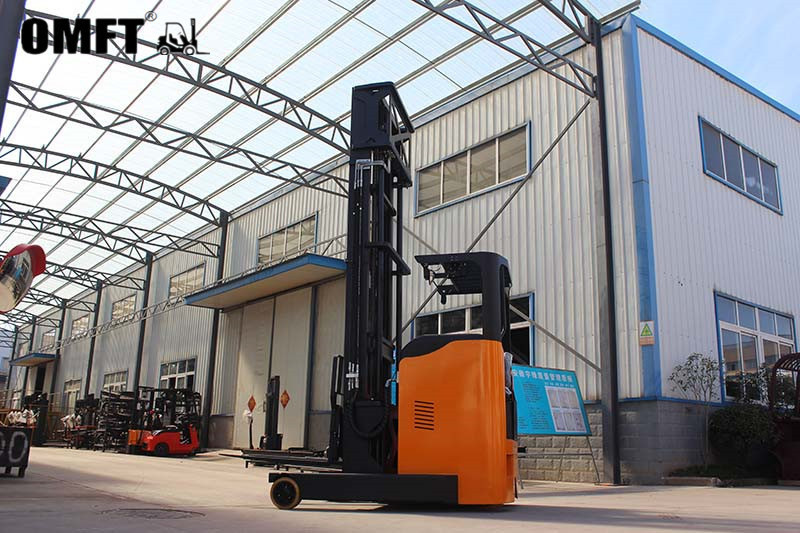

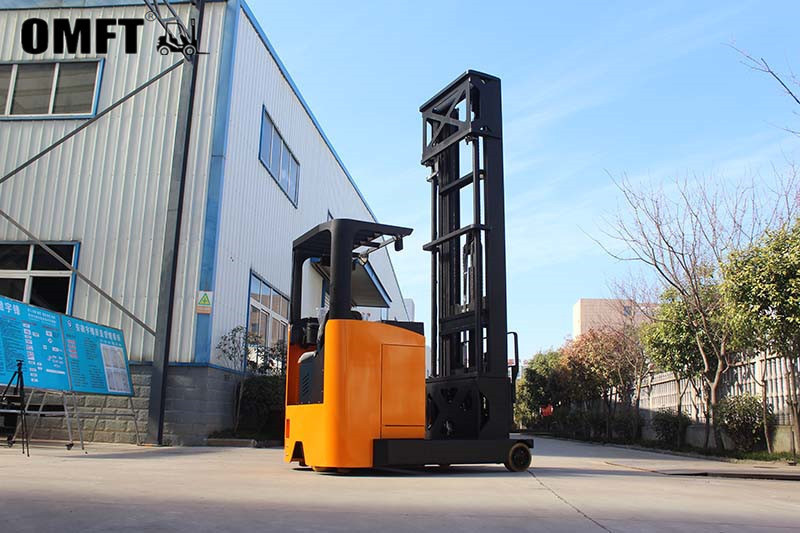

12m 11m Side standing type electric reach truck stacking forklift lifting truck reach stacker 12m 11m Side Standing Electric Reach Truck Stacking Forklift Lifting Truck Reach Stacker 0

Brand		OMFT	OMFT
Model		CQD16B	CQD20B
Power Type		Battery	Battery
Operation Type		Seated	Seated
Rated Capacity	Q(kg)	1600	2000
Load Center	C(mm)	500	500
Front Overhang	x(mm)	205	205
Wheelbase	y(mm)	1600	1600

Service weight(incl. battery)	kg	4300	4650

Tyres,front/rear		Solid PU	Solid PU
Tyre size,front	mm	φ300×120	φ300×120
Tyre size,drive wheel	mm	φ343×120	φ343×120
Tyre size,balance wheel	mm	/	/
Tyres No. front/rear (X=drive)		2 / 1X	2 / 1X
Wheel tread-Drive side	b10(mm)	/	/
Wheel tread-load side	b11(mm)	1270	1270

Tilt of fork forward/backward	α/β(°)	3/5	3/5
Height-Mast Lowered	h1(mm)	4184	4950
Free lift height	h2(mm)	3482	3482
Lift height	h3(mm)	10000	12000
Height-Overhead guard	h6(mm)	2200	2200
Height of pedal	h7(mm)	376	376
Overall Length (incl. fork)	11(mm)	2496	2496
Overall Width	b1/b2(mm)	1270/1390	1270/1390
Fork Dimensions	l/e/s(mm)	1070×100×40	1070×100×40
Width of fork backrest	b3(mm)	1090	1090
Distance between fork-arms	b5(mm)	222-750	222-750
Inner distance between legs	b4(mm)	990	990
Reach Stroke	L4(mm)	617	617
Min. ground clearance of mast	m1(mm)	75	75
Aisle width for pallet 1000*1200 crossways	Ast(mm)	2912	2912
Aisle with for pallet 1200*800 crossways	Ast(mm)	2956	2956
Turning radius	Wa(mm)	1872	1872

Travel Speed ,laden/unladen	km/h	10/10	10/10
Lift Speed ,laden/unladen	mm/s	300/300	260/360
Lowering speed,laden/unladen	mm/s	300/250	300/250
Max. Gradeability,laden/unladen	%	≤10	≤10
Brake type		Mechanical	Mechanical

Drive Motor	kw	AC 5.5	AC 5.5
Lift motor	kw	AC 8.6	AC 12.8
Battery voltage/capacity	V/Ah	48/420	48/560 (48/750)
Battery weight	kg	780	920
Steering type		eps	eps

Battery Change type		Front Pull Changing	Front Pull Changing

Features:
1.The design of high capacity mast can satisfy the high capacity requirements,with excellent mast design,it's can
assure no any loss of load at 6000mm based on standard load center,also the load capacity at higher lift are
better than before;
2.All-wheel Brake System with standard front wheel and rear wheel brake for all models,the braking effect is
better,it's better to used in slip grounds and cold storage,it's to make the operator more safe.
3. Excellent Working time:with full AC system,with AC brushless motor,with high efficiency and energy-saving
performance,it's can satisfy the working time based on heavy working condition.
4.Ergonomic design: easy-operation design and multi-function instrument panel, to make the operation more
comfortable and convenient .
5. High efficient design concept:great travel speed and mast lift&down speed , saving waiting time of normal
working, greatly increases working efficiency and stacking capacity;
Standard Configuration:
Curtis Controller			Ramp Auxiliary Braking System
Full AC System			Forward Speed-limited at high lift
All wheels Brake			High Capacity Battery
Solid PU Wheel			Intelligent Charger

WHY CHOOSE US?
1.Strong production, research and development, after-sales capacity
We have 35, 000 square meters workshop and 100 R&D staff. We have been specializing in the forklift industry for more than 20 years. 20,000 units production capacity per year. OEM is also welcomed.

2.High quality source of raw materials and spare parts
Our spare parts and steel are all from well-known manufacturers at home and abroad with reliable quality. Besides, we are very professional in painting, welding and other production processes. Our products are both excellent in appearance and internal structure.

3.Competitive price and fast delivery
For standard forklift, normally we have them in store. If not, we can finish production within 1 week. Even for high mast and other non-standard forklift,we can finish production within 2 weeks. Our price is transparent and competitive. We are not the cheapest in the market, but we ensure you that our products worth every penny.

4.Professional technical guidance and use training
We have detailed operation instructions and video instructions for each product. If you have any question during the use, please feel free to contact us. We have professional personnel to answer them one by one.

5.Warranty and after-sales service
2000h or 2 years warranty time. Free parts change during warranty time.
Strict quality testing was conducted for each truck before shipping to ensure the safety of users.
In order to ensure our customer has a good using feeling, we send some spare parts for free with every forklift, eg: filters, seal, cylinder, etc.
In future, if customers need any spare parts, we will arrange shipping within 48h.

6.Complete product line
Diesel Forklift:1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 3.8ton; 4ton; 4.5ton; 5ton; 6ton; 7ton; 8ton; 10ton; 12ton; 14ton; 15ton;16ton; 25ton; 28ton; 33ton; 42ton;45ton;48ton.
LPG&Gasoline Forklift :1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton; 7ton.
Electric Forklift: 1ton; 1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton.
Warehouse and material handling equipment: Manual hand pallet truck; electric pallet truck; electric pallet stacker; electric reach stacker; VNA(very narrow aisle) 3way or 4ways stacker; tow tractor; AGV equipments
Aerial platform:Scissor lifting platform 3.9M; 5.8M; 8M;10M;12M;14M
Rough terrain Off-road forklift and side forklift truck: 2ton to 12 ton

7.Logistics
It doesn't matter whether you have import qualification or not, we can solve the logistics problem for you. We have reliable logistics team and can send the goods directly to your warehouse if you need.
Also, we can do FOB, CIF and FCA term as you required.
12m 11m Side Standing Electric Reach Truck Stacking Forklift Lifting Truck Reach Stacker 4
