Detail Information

Model NO.:	CDD03Q	Lift Height:	3000mm
Condition:	New	Travel Speed(Laden/Unladen):	4km/H
Standard:	Ce ISO SGS	Battery:	2X12/100
Min. Turning Radius:	1500mm	Battery Charger:	Free
OEM And Spare Parts:	Available	Capacity:	300kgs
Platfrom Size:	650X690	Driving Motor:	2X24/0.4
Lifting Motor:	24/1.6	Transport Package:	Standard Sea Freight Packing
Specification:	Solid PU	Trademark:	OMFT
Origin:	China	HS Code:	842710
Supply Ability:	200 PCS/Year

Product Description

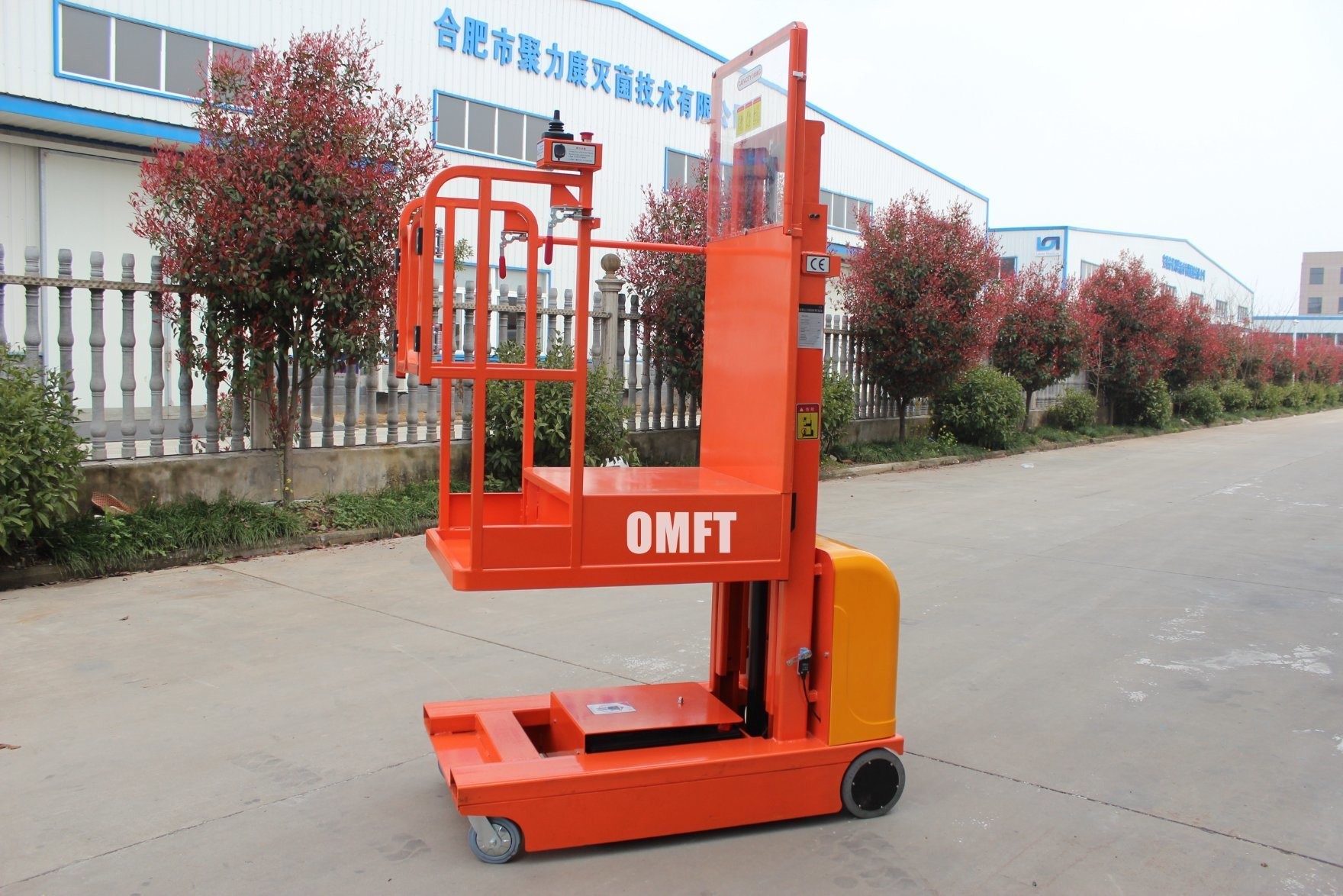

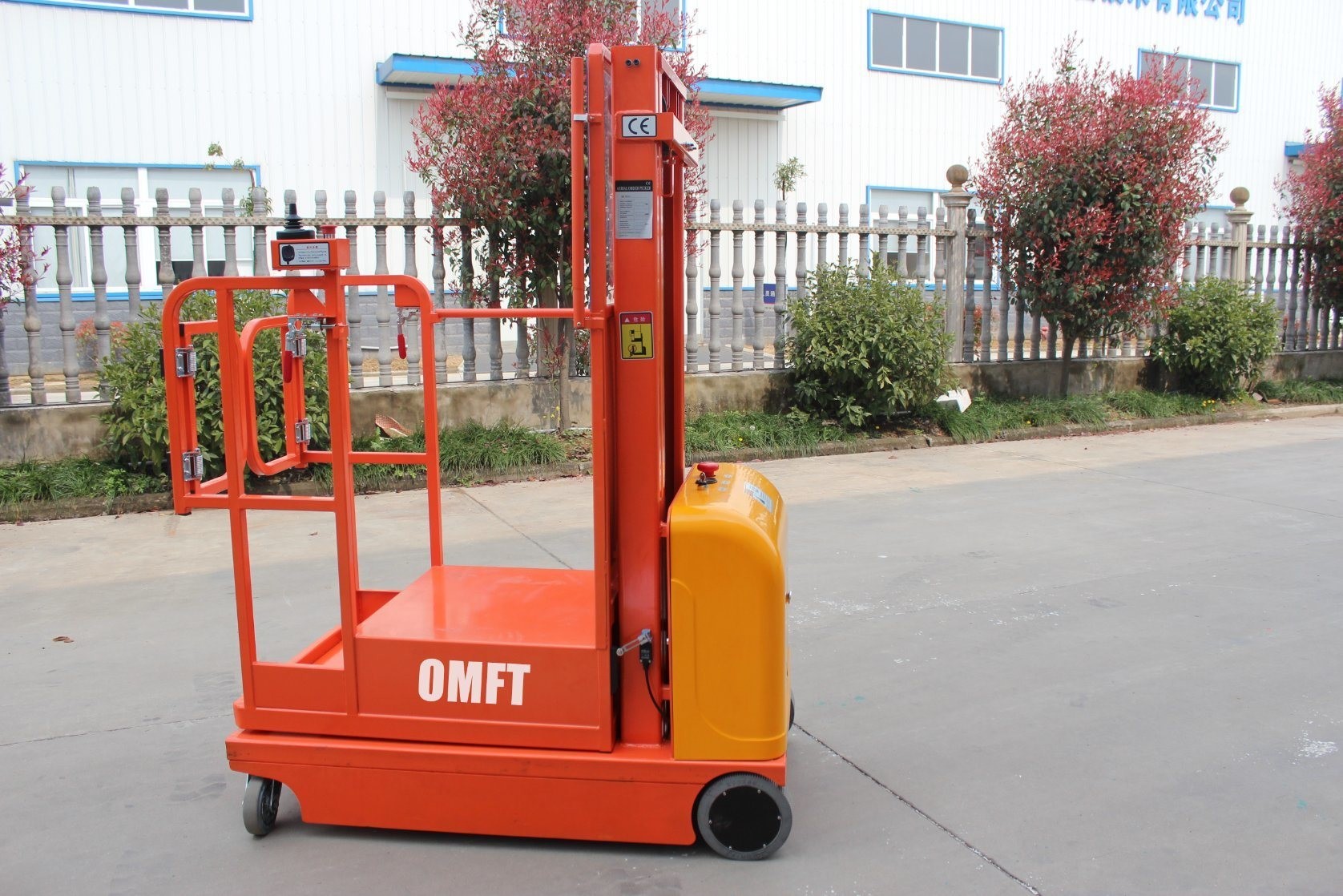

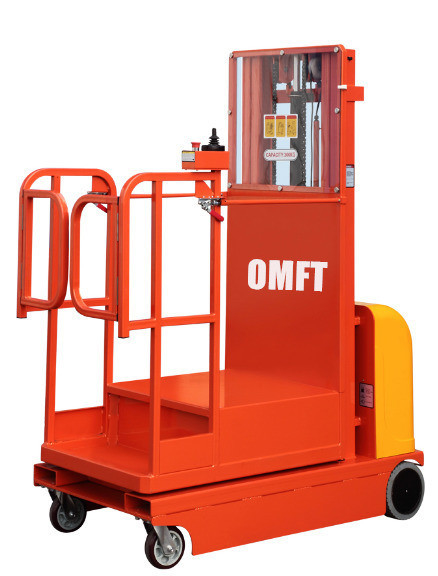

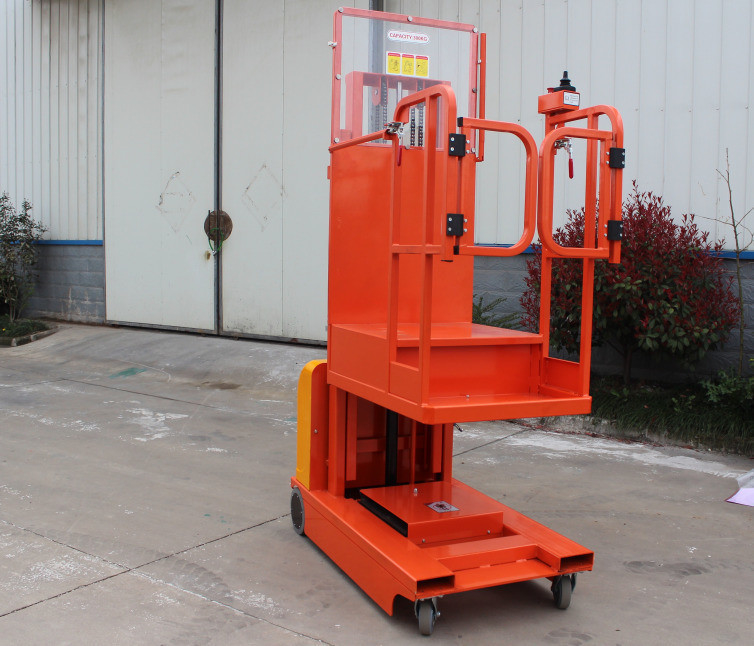

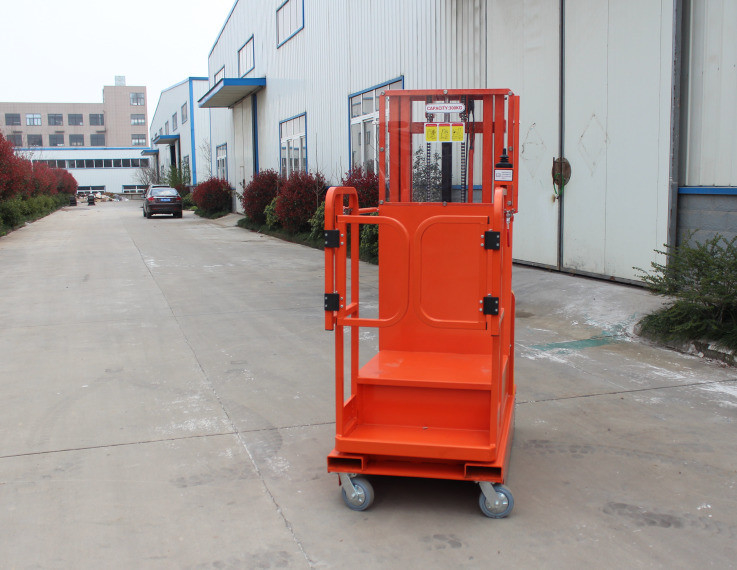

Electric Aerial Order Picker for Materials Lifting (3m Height)
3Meters Height High Automatic Full Electric Order Picker
300kgs Capacity 24/1.6 Lifting Motor Full Electric Order Picker with 3meters Height 0

Name		High altitude full electric order picker
Model No.	Unit	CDD03Q-30
Max load	Kg	300
Max platform height	(mm)	3000
Max machine height	(mm)	4439
Min. Distrance to the ground	(mm)	40
Platfrom size	mm	650x690
Max drive speed (fall)	km/h	4
Max drive speed (rise)	km/h	1.5
Overall length	L(mm)	1520
Overall width	W(mm)	760
Min.Turning radius	Wa(mm)	1500
Max adapted ground degree	%	15-20
Total weight	Kg	580
Driving wheel size	mm	Ø230*80
Caster wheel size	in	6
Maintenance free Battery capacity	V/Ah	2x12/100
Charger	V/A	24/30
Driving motor	V/Kw	2x24/0.4
Lifting motor	V/Kw	24/1.6
Overall height	mm	1860

WHY CHOOSE US?
1.Strong production, research and development, after-sales capacity
We have 35, 000 square meters workshop and 100 R&D staff. We have been specializing in the forklift industry for more than 20 years. 20,000 units production capacity per year. OEM is also welcomed.

2.High quality source of raw materials and spare parts
Our spare parts and steel are all from well-known manufacturers at home and abroad with reliable quality. Besides, we are very professional in painting, welding and other production processes. Our products are both excellent in appearance and internal structure.

3.Competitive price and fast delivery
For standard forklift, normally we have them in store. If not, we can finish production within 1 week. Even for high mast and other non-standard forklift,we can finish production within 2 weeks. Our price is transparent and competitive. We are not the cheapest in the market, but we ensure you that our products worth every penny.

4.Professional technical guidance and use training
We have detailed operation instructions and video instructions for each product. If you have any question during the use, please feel free to contact us. We have professional personnel to answer them one by one.

5.Warranty and after-sales service
2000h or 2 years warranty time. Free parts change during warranty time.
Strict quality testing was conducted for each truck before shipping to ensure the safety of users.
In order to ensure our customer has a good using feeling, we send some spare parts for free with every forklift, eg: filters, seal, cylinder, etc.
In future, if customers need any spare parts, we will arrange shipping within 48h.

6.Complete product line
Diesel Forklift:1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 3.8ton; 4ton; 4.5ton; 5ton; 6ton; 7ton; 8ton; 10ton; 12ton; 14ton; 15ton;16ton; 25ton; 28ton; 33ton; 42ton;45ton;48ton.
LPG&Gasoline Forklift :1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton; 7ton.
Electric Forklift: 1ton; 1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton.
Warehouse and material handling equipment: Manual hand pallet truck; electric pallet truck; electric pallet stacker; electric reach stacker; VNA(very narrow aisle) 3way or 4ways stacker; tow tractor; AGV equipments
Aerial platform:Scissor lifting platform 3.9M; 5.8M; 8M;10M;12M;14M
Rough terrain Off-road forklift and side forklift truck: 2ton to 12 ton

7.Logistics
It doesn't matter whether you have import qualification or not, we can solve the logistics problem for you. We have reliable logistics team and can send the goods directly to your warehouse if you need.
Also, we can do FOB, CIF and FCA term as you required.
