Detail Information

Model NO.:	TJC	Surface Treatment:	Sand Blast And Black Paint
Customized:	Customized	Standard:	Standard
Available Forklift:	1-4.5ton	Distance:	100mm
Weight:	250kgs	Transport Package:	Pallet
Trademark:	OMFT	Origin:	China
HS Code:	843120	Supply Ability:	7000 PCS/Year
Package Size:	1200.00cm * 60.00cm * 10.00cm	Package Gross Weight:	240.000kg

Product Description

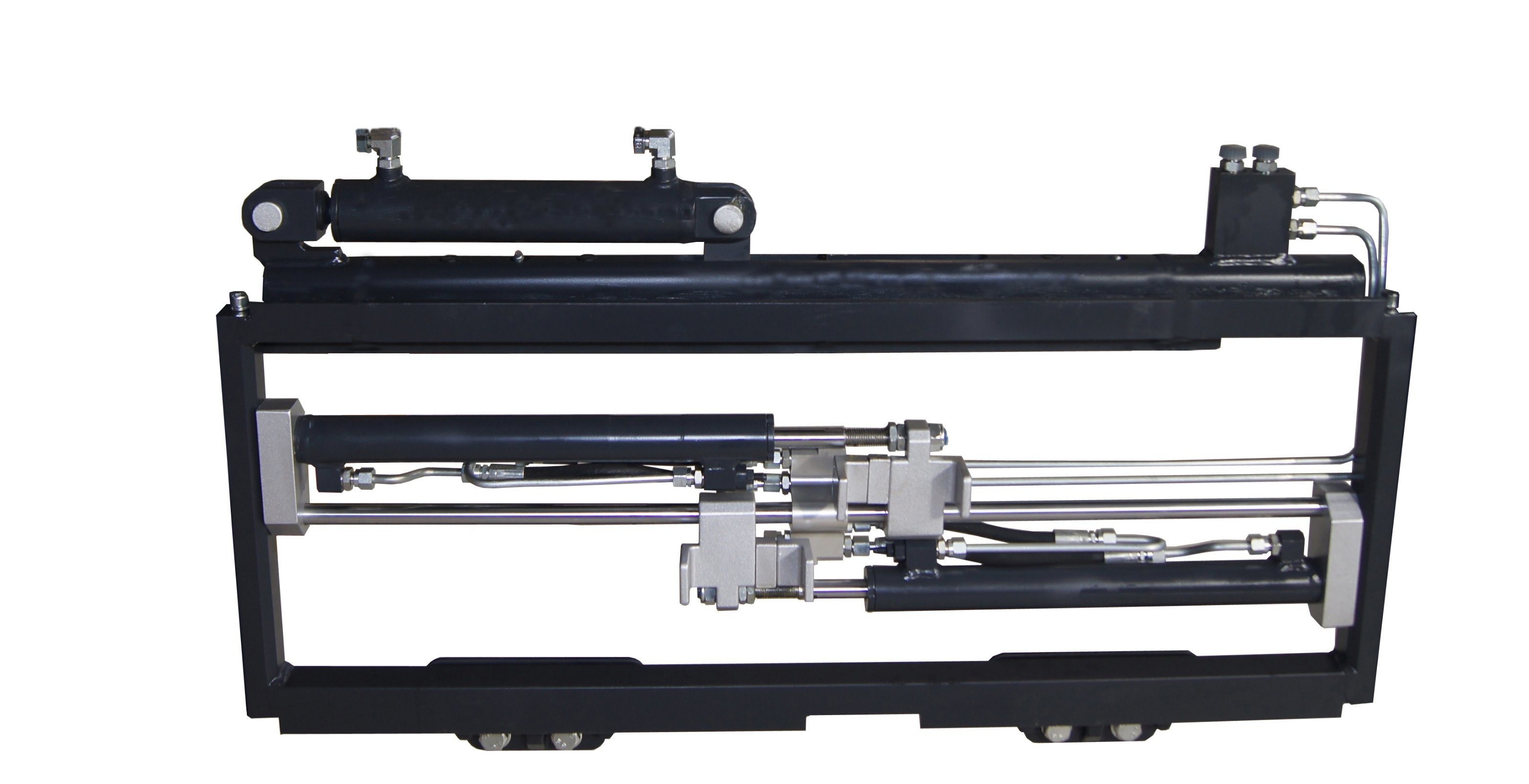

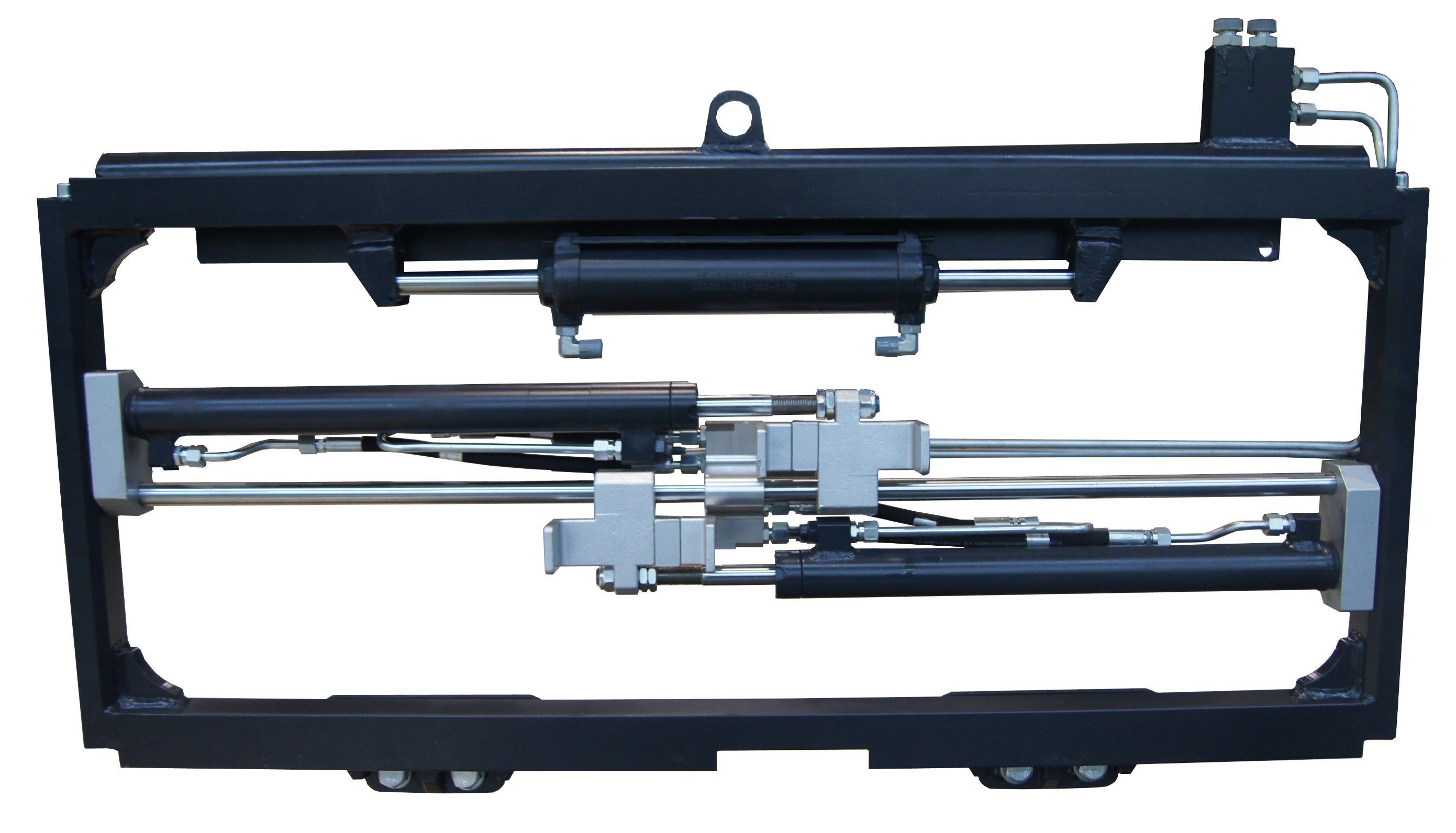

Side Shifter Tcm/Linde/Yale/Toyota/Crown/Hyster/Heli/Ep/Hangcha

CAPACITY@ LOAD CENTER	MODEL	MOUNTING CLASS	OPENING RANGE	CARRIAGE WIDTH	FORK POCKET WIDTH	VERTICAL CENTER OF GRAVITY	WEIGHT	EFFECTIVE THICKNESS	HORIZONTAL CENTER OF GRAVITY
(Kg@mm)	/	/	A (mm)	W(mm)	(mm)	VCG(mm)	(Kg)	ET(mm)	HCG(mm)
2500@600	TJC25M-B001-1150	II	290-1043	1150	100-120	219	77	64	29
2500@600	TJC25M-B001-1380	II	295-1285	1380	100-120	218	87	64	29
3500@600	TJC35M-C001-1070	III	285- 958	1070	120-130	294	85	64	35
3500@600	TJC35M-C001-1150	III	285-1038	1150	120-130	295	89	64	35
3500@600	TJC35M-C001-1380	III	345-1285	1380	150	295	101	64	35

Remarks:
1. Please gain the actual overall carrying capacity of forklift trucks/attachments from the forklift truck manufacturers.
2.The forklift truck needs to add two groups of additional oil lines so as to match the attachments.
3.Opening range: the minimum is the inside distance between two forks while they are closing, and the maximum is the outside distance between two forks while they are opening.
4.Sideshifting amount of the fork positioner is ±100mm.

5.It is recommended that the length of the fork does not exceed 1520mm.

Product characteristics

1 .Hydraulic system: the piston rod of the sideshift oil cylinder adopts the integral type, which is simple in structure and convenient for processing and repairing; the positioning oil cylinder has throttle valve to adjust the fork positioning speed, and the seals adopt well-known brand products with reliable quality.

2.Mechanical performance: the shift fork adopts fine steel castings, which is indestructible, and connected with supporting rod to reach compact structure, and light in weight to be convenient for fork installation, and the distance between forks while closing is smaller, respectively and making them close or separate, so as to improve the handling efficiency significantly.

WHY CHOOSE US?

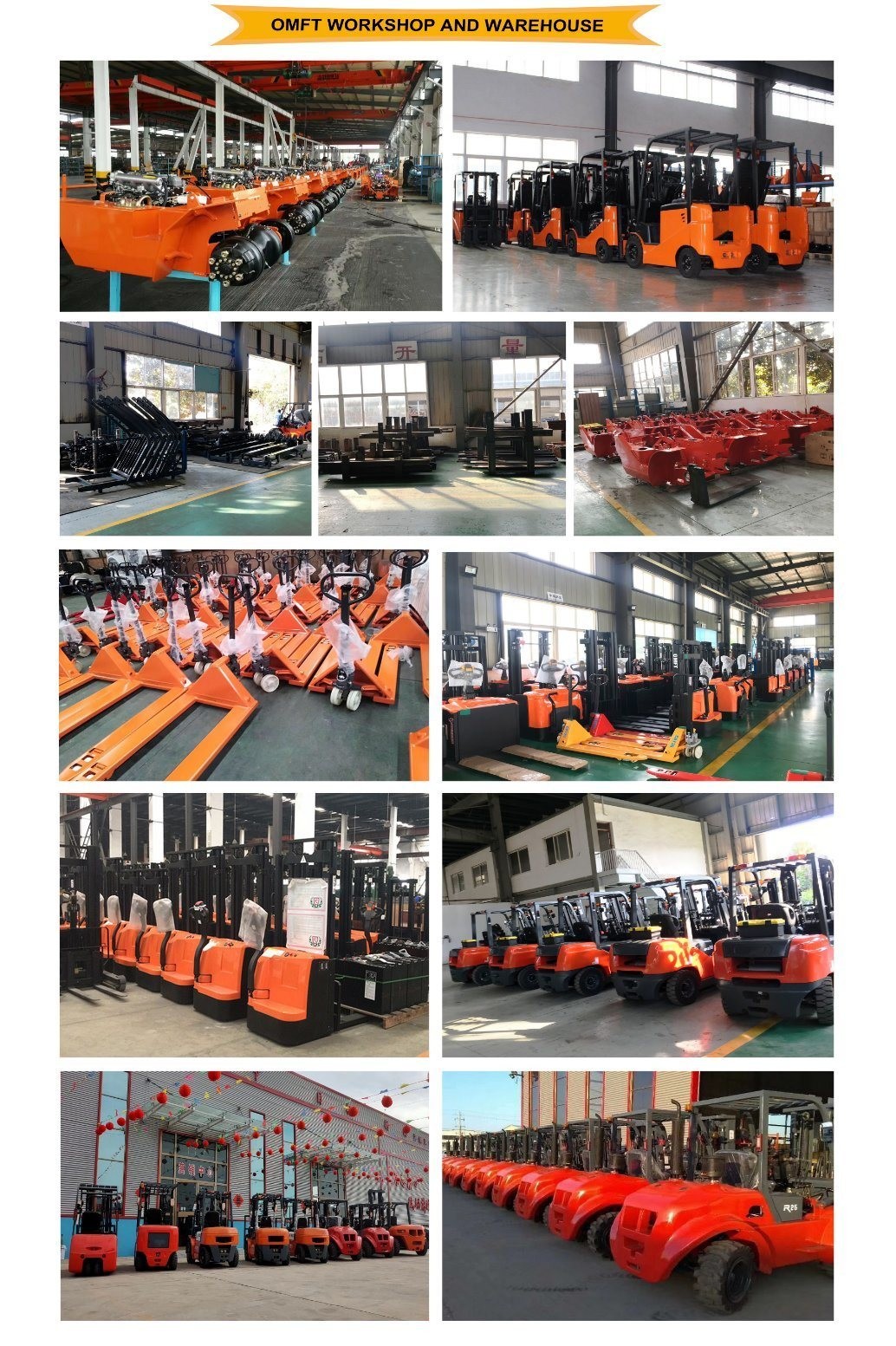

1.Strong production, research and development, after-sales capacity
We have 35, 000 square meters workshop and 100 R&D staff. We have been specializing in the forklift industry for more than 20 years. 20,000 units production capacity per year. OEM is also welcomed.

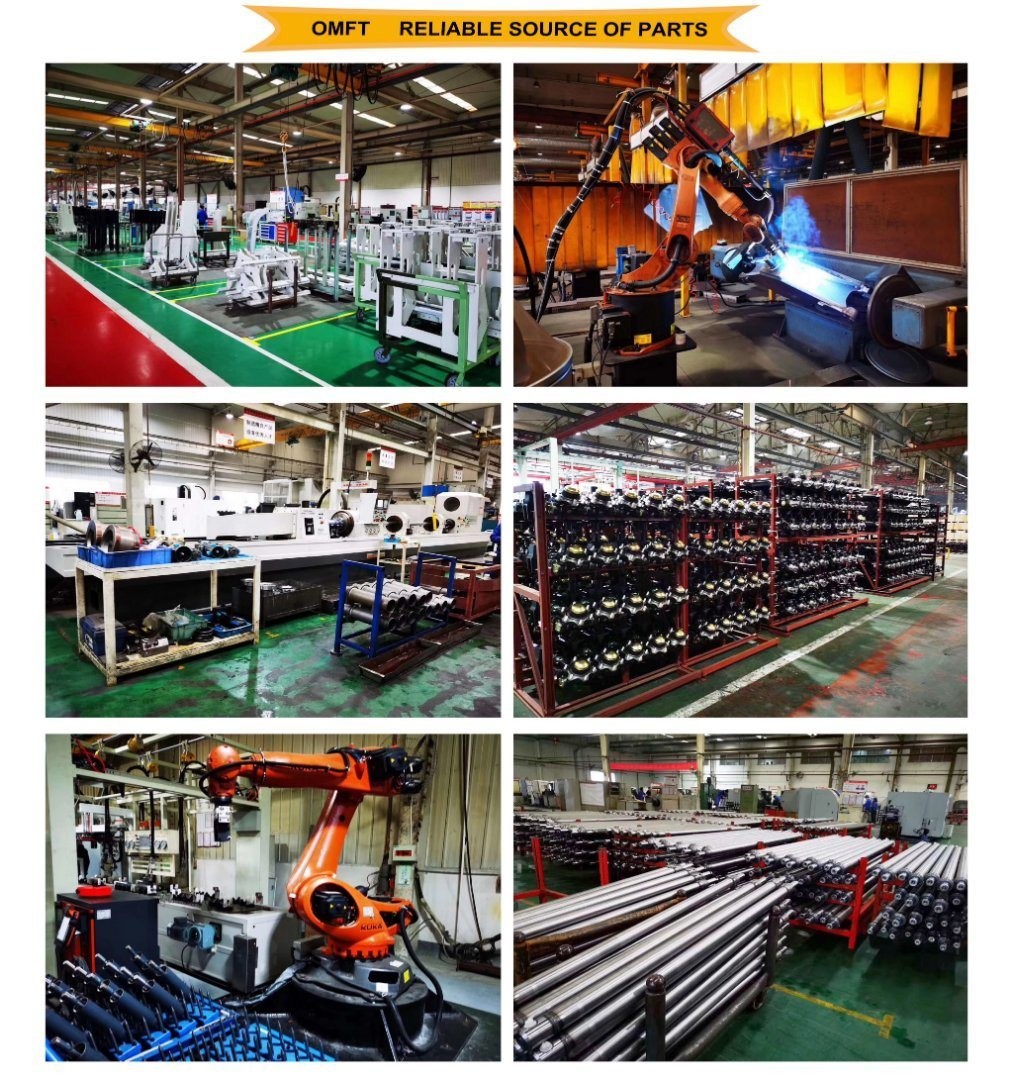

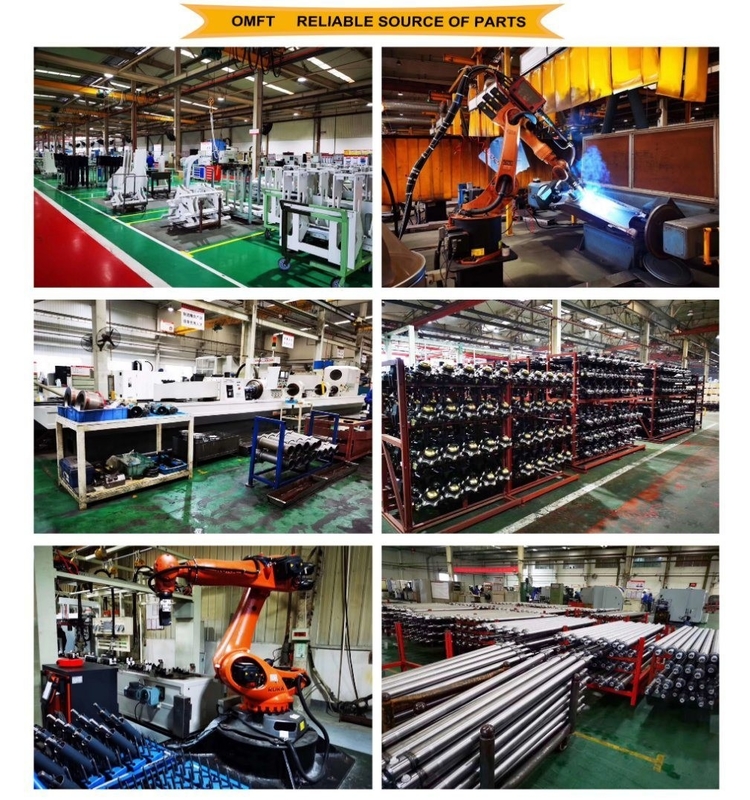

2.High quality source of raw materials and spare parts
Our spare parts and steel are all from well-known manufacturers at home and abroad with reliable quality. Besides, we are very professional in painting, welding and other production processes. Our products are both excellent in appearance and internal structure.

3.Competitive price and fast delivery
For standard forklift, normally we have them in store. If not, we can finish production within 1 week. Even for high mast and other non-standard forklift,we can finish production within 2 weeks. Our price is transparent and competitive. We are not the cheapest in the market, but we ensure you that our products worth every penny.

4.Professional technical guidance and use training
We have detailed operation instructions and video instructions for each product. If you have any question during the use, please feel free to contact us. We have professional personnel to answer them one by one.

5.Warranty and after-sales service
2000h or 2 years warranty time. Free parts change during warranty time.
Strict quality testing was conducted for each truck before shipping to ensure the safety of users.
In order to ensure our customer has a good using feeling, we send some spare parts for free with every forklift, eg: filters, seal, cylinder, etc.
In future, if customers need any spare parts, we will arrange shipping within 48h.

6.Complete product line
Diesel Forklift:1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 3.8ton; 4ton; 4.5ton; 5ton; 6ton; 7ton; 8ton; 10ton; 12ton; 14ton; 15ton;16ton; 25ton; 28ton; 33ton; 42ton;45ton;48ton.
LPG&Gasoline Forklift :1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton; 7ton.
Electric Forklift: 1ton; 1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton.
Warehouse and material handling equipment: Manual hand pallet truck; electric pallet truck; electric pallet stacker; electric reach stacker; VNA(very narrow aisle) 3way or 4ways stacker; tow tractor; AGV equipments
Aerial platform:Scissor lifting platform 3.9M; 5.8M; 8M;10M;12M;14M
Rough terrain Off-road forklift and side forklift truck: 2ton to 12 ton

7.Logistics
It doesn't matter whether you have import qualification or not, we can solve the logistics problem for you. We have reliable logistics team and can send the goods directly to your warehouse if you need.
Also, we can do FOB, CIF and FCA term as you required.
