Detail Information

Model NO.:	XZ	HS Code:	843120
Supply Ability:	7000 PCS/Year

Product Description

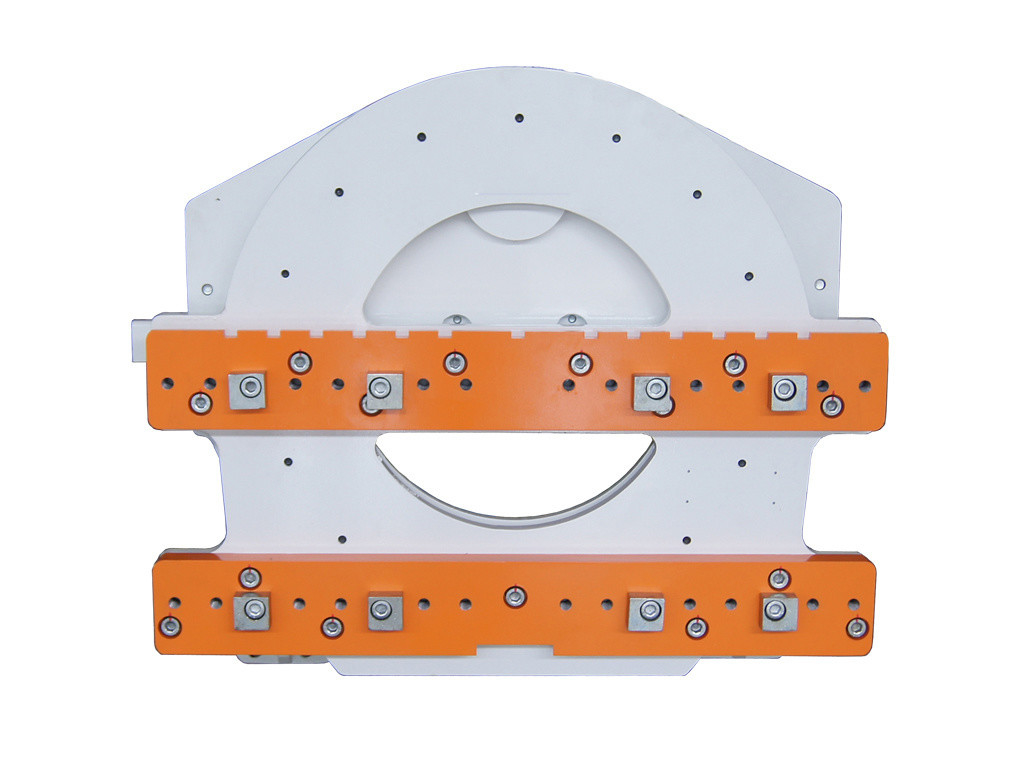

Rotator Forklift Part Rotators for 1ton to 7ton Forklift Rotate

CAPACITY@ LOAD CENTER	MODEL	MOUNTING CLASS	FORK MOUNTING CLASS	CARRIAGE WIDTH	FORK MAX. SPACING	MIN. TRUCK CARRIAGE WIDTH	VERTICAL CENTER OF GRAVITY	WEIGHT	EFFECTIVE THICKNESS	HORIZONTAL CENTER OF GRAVITY
(Kg@mm)	/	/	/	W (mm)	OTO(mm)	(mm)	VCG(mm)	(Kg)	ET(mm)	HCG(mm)
1500@500	XZQ15E-B001	II	II	730	645	800	280	193	133	63
2500@500	XZQ25E-B001	II	II	965	880	800	299	296	160	89
3500@500	XZQ35E-C001	III	III	1100	1030	800	303	378	228	138
3500@500	XZQ30E-C007	III	III	1350	1280	800	286	398	228	141
4500@600	XZQ45E-C001	III	III	1200	1094	1016	326	489	178	98
6000@600	XZQ60E-D001	IV	IV	1200	1021	1016	310	577	235	143
7000@600	XZQ70E-D001	IV	IV	1550	1330	1150	380	840	272	130
8000@600	XZQ80E-D001	IV	IV	1800	1600	1150	380	820	272	166

Remarks:
1. Please gain the actual overall carrying capacity of forklift truck attachments from the forklift truck manufacturers.

2.It can add forks according to the needs of users, and please pay attention to the bearing capacity of the fork itself.

3.Forklift truck needs to add a group of additional oil lines.

4.Forks equipped for rotators must be welded with middle hooks, and the whole machine of rotators out of factory shall be attached with middle hooks.

Product characteristics

1 .Hydraulic system: all the motors, valves and seals adopt originally imported products.

2.Structural part: it adopts large-modulus slewing bearing, which has stronger bearing capacity; turbine and worm adopts involute gears, so as to not only increase the efficiency and decrease the heat loss, but also realize the self-ocking function.

3.Mechanical performance: it can realize the 360°two-way rotation, and it can meet the requirements just by adding a group of oil lines; and it can directly use the standard fork without needing any modification.

4.Applicable scope: it's widely used in food, automatic production, chemical, materials recycle, melting casting and other industries, and the sites need rotating to tip and mix the hoppers or boxes, and it can tip or change the| cargoes quickly, and then bring back the fork to the original position immediately and consistently.

WHY CHOOSE US?

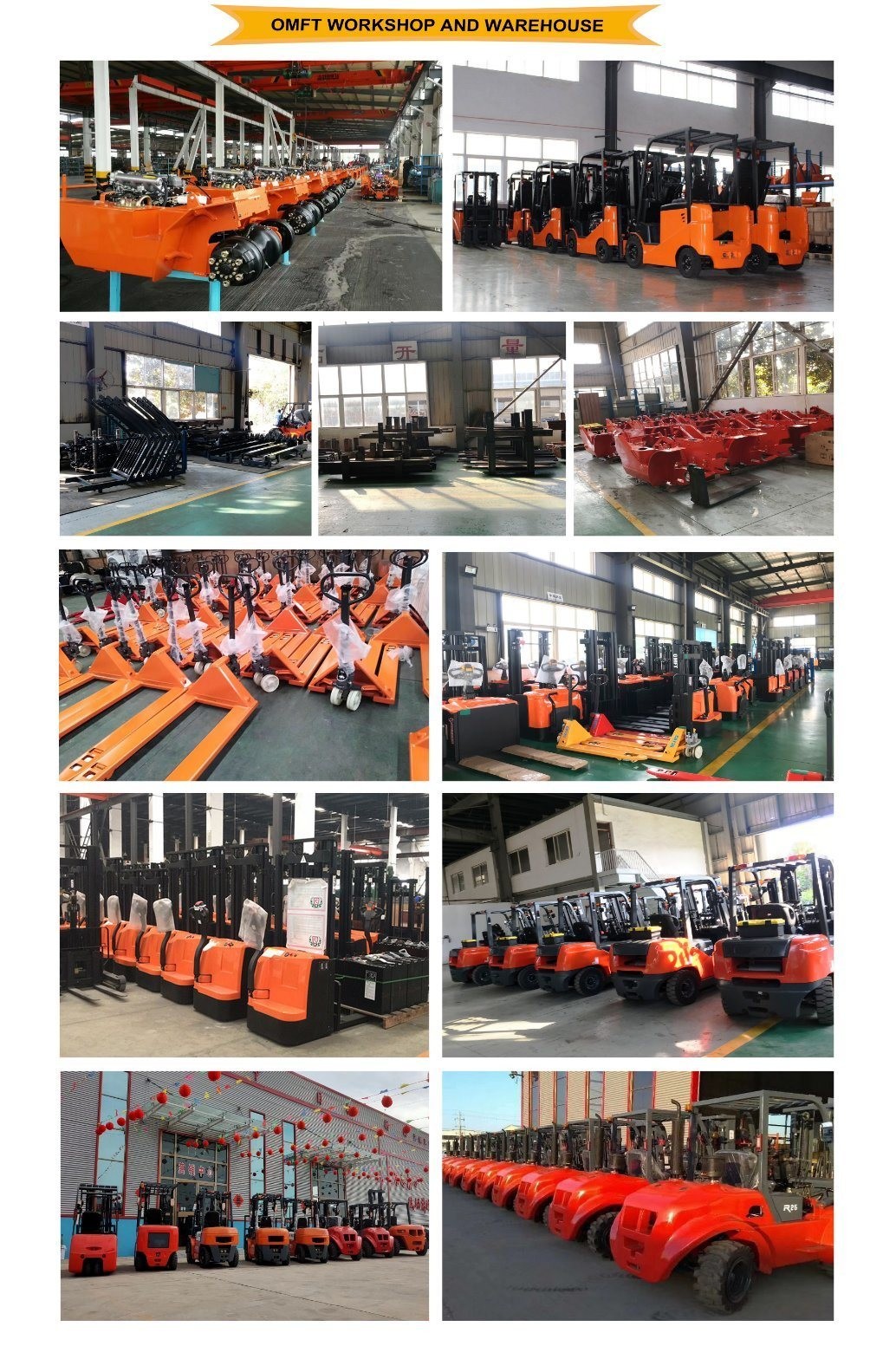

1.Strong production, research and development, after-sales capacity
We have 35, 000 square meters workshop and 100 R&D staff. We have been specializing in the forklift industry for more than 20 years. 20,000 units production capacity per year. OEM is also welcomed.

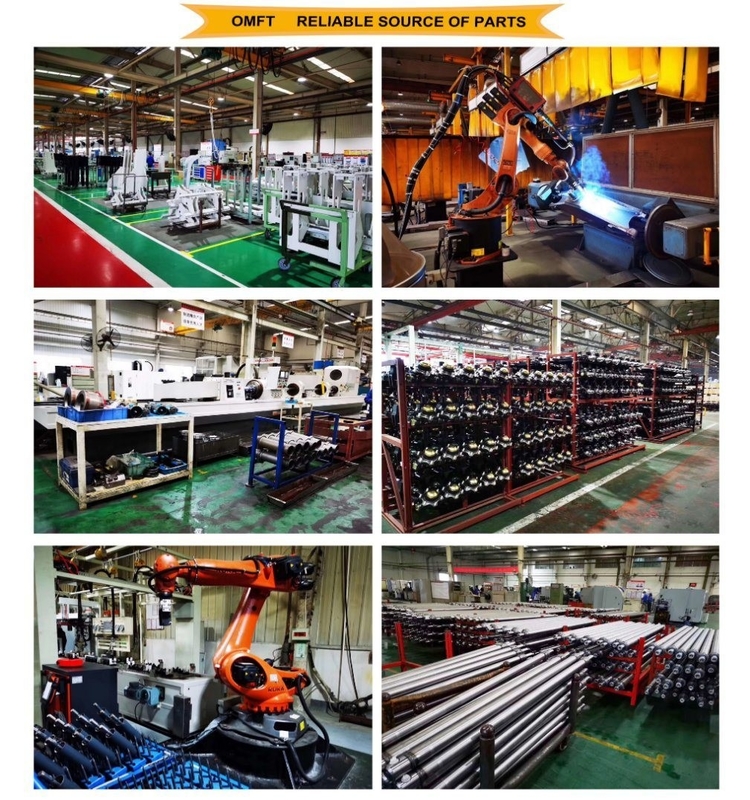

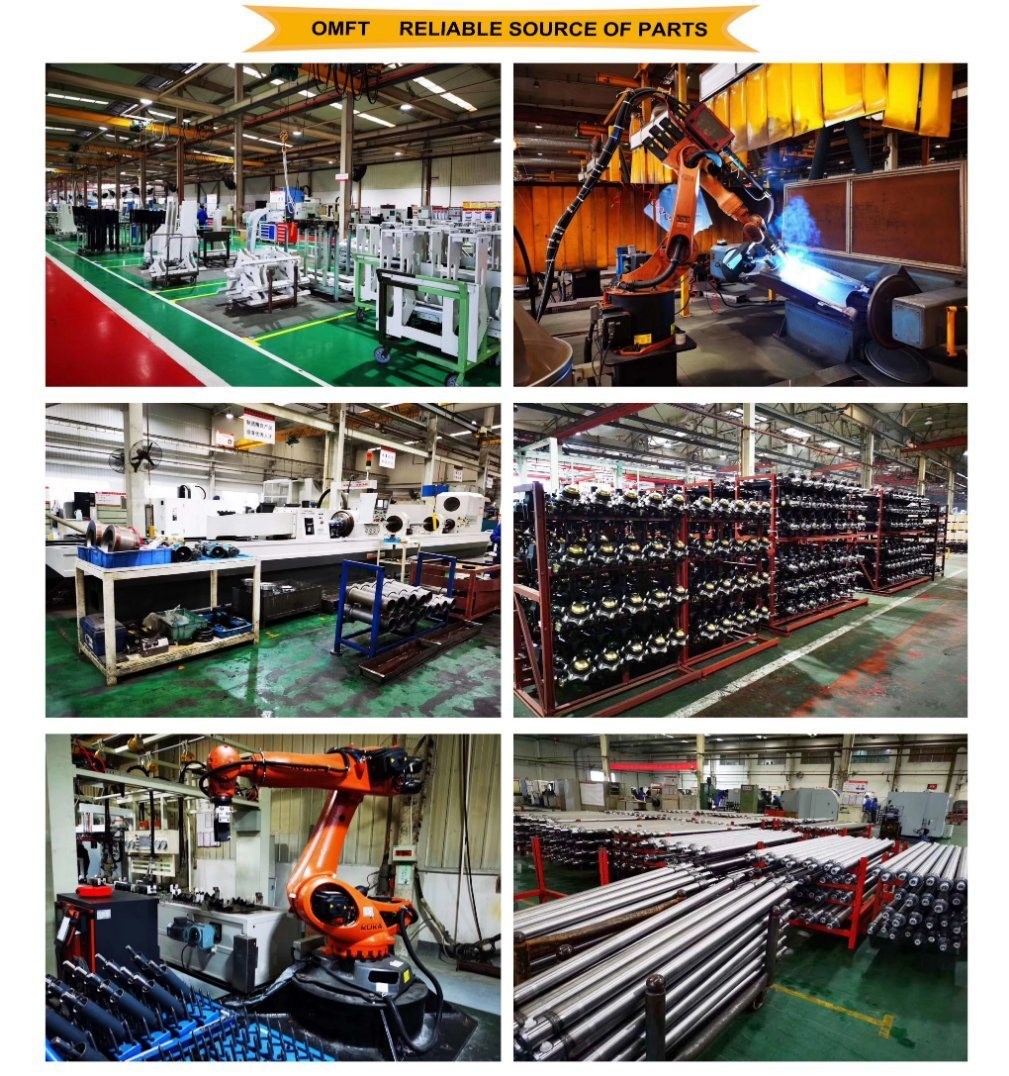

2.High quality source of raw materials and spare parts
Our spare parts and steel are all from well-known manufacturers at home and abroad with reliable quality. Besides, we are very professional in painting, welding and other production processes. Our products are both excellent in appearance and internal structure.

3.Competitive price and fast delivery
For standard forklift, normally we have them in store. If not, we can finish production within 1 week. Even for high mast and other non-standard forklift,we can finish production within 2 weeks. Our price is transparent and competitive. We are not the cheapest in the market, but we ensure you that our products worth every penny.

4.Professional technical guidance and use training
We have detailed operation instructions and video instructions for each product. If you have any question during the use, please feel free to contact us. We have professional personnel to answer them one by one.

5.Warranty and after-sales service
2000h or 2 years warranty time. Free parts change during warranty time.
Strict quality testing was conducted for each truck before shipping to ensure the safety of users.
In order to ensure our customer has a good using feeling, we send some spare parts for free with every forklift, eg: filters, seal, cylinder, etc.
In future, if customers need any spare parts, we will arrange shipping within 48h.

6.Complete product line
Diesel Forklift:1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 3.8ton; 4ton; 4.5ton; 5ton; 6ton; 7ton; 8ton; 10ton; 12ton; 14ton; 15ton;16ton; 25ton; 28ton; 33ton; 42ton;45ton;48ton.
LPG&Gasoline Forklift :1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton; 7ton.
Electric Forklift: 1ton; 1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton.
Warehouse and material handling equipment: Manual hand pallet truck; electric pallet truck; electric pallet stacker; electric reach stacker; VNA(very narrow aisle) 3way or 4ways stacker; tow tractor; AGV equipments
Aerial platform:Scissor lifting platform 3.9M; 5.8M; 8M;10M;12M;14M
Rough terrain Off-road forklift and side forklift truck: 2ton to 12 ton

7.Logistics
It doesn't matter whether you have import qualification or not, we can solve the logistics problem for you. We have reliable logistics team and can send the goods directly to your warehouse if you need.
Also, we can do FOB, CIF and FCA term as you required.
