Electric Reach Truck 24V with Battery and Free Charger 3m 3.5m 4m 4.5m 5m 5.5m 6m Mast

Basic Information

Place of Origin:	China

Minimum Order Quantity:	1 set
Delivery Time:	Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms:	LC, T/T

Get Best Price Contact Now

Detail Information

Model NO.:	Cqd	Type:	Reach Forklift
Power:	AC Motor	Load Capacity:	1200kgs 1500kgs 2000kgs
Fuel:	Electric	Load Center:	500mm
Lift Height:	3000~6000mm	Condition:	New
Travel Speed(Laden/Unladen):	4/5km/H	Standard:	CE ISO SGS
Battery:	24V/280ah	Min. Turning Radius:	1597mm
Min. Width Of Right Angle Stacking:	2610mm	Fork:	100/35/1070mm
Battery Charger:	Free	OEM And Spare Parts:	Available
Drive:	Stand-on/Seated	Transport Package:	Standard Sea Freight Packing
Specification:	Steel+PU	Trademark:	OMFT
Origin:	China	HS Code:	842710
Supply Ability:	7000 PCS/Year	Package Size:	2205.00cm * 1090.00cm * 2090.00cm
Package Gross Weight:	2180.000kg	Customization:	Available
After-sales Service:	Lifetime Service	Warranty:	24months Or 4000hours
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payment In USD
Secure Payments:	Every Payment You Make At Made-in-china.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Product Description

24V EPS Stand-on/Seated Full Electric Battery Operated New 1ton 1.2Ton 1.5ton 2ton Battery Operated Electric Reach Stacker Max Lifting Height 6000mm 6M mast pallet stacker reach truck

1.5 tons stand on electric reach truck Electric battery lift reach stand - on truck fork lift

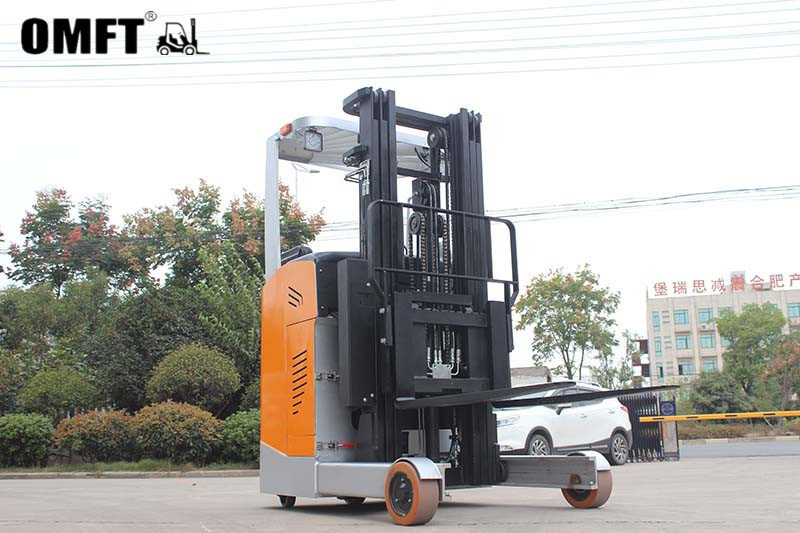

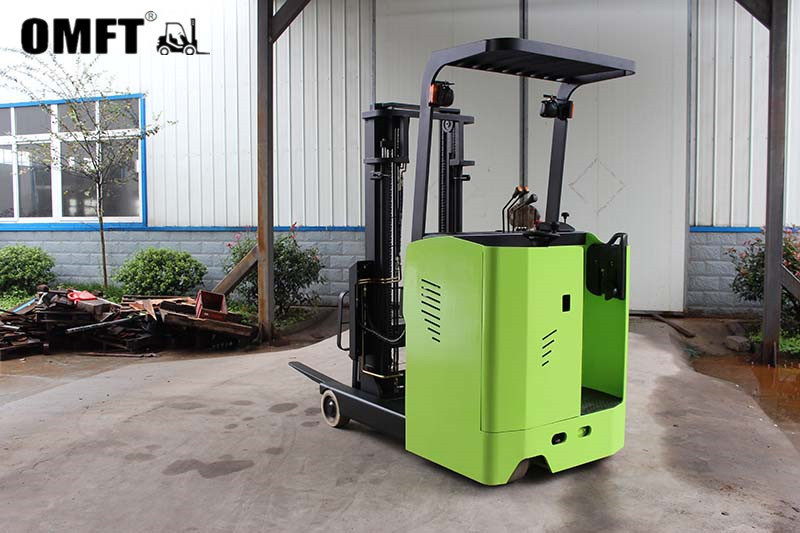

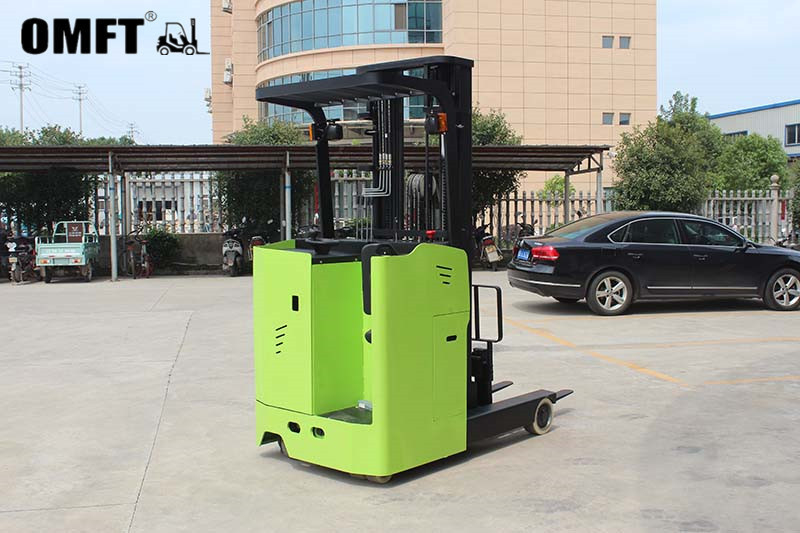

Electric Reach Truck 24V with Battery and Free Charger 3m 3.5m 4m 4.5m 5m 5.5m 6m Mast 0

Model		CQD12	CQD15	CQD20
Power type		Electric	Electric	Electric
Operation type		Seated type	Seated type	Seated type
Load capacity	Q(kg)	1200	1500	2000
Load center	C(mm)	500	500	500
Front overhang	X(mm)	180	180	180
Wheelbase	Y(mm)	1355	1355	1540
Self weight (including battery)	kg	1995	2180	2535
Wheel type		Polyurethane	Polyurethane	Polyurethane
Front wheel size	∅×w(mm)	254*104	254*104	254*104
Drive wheel size	∅×w(mm)	230*75	230*75	230*75
Balancing wheel size	∅×w(mm)	150*50	150*50	150*50
Wheel-track,front wheel	b10(mm)	976	976	976
Wheel-track,rear wheel	b11(mm)	772	772	772
Mast retracted height	h1(mm)	2120	2120	2120
Fork lifting height	h3(mm)	4500	4500	4500
Maximum height when fork lifting with backrest	h4(mm)	5465	5465	5465
Height of overhead guard	h14(mm)	2090	2090	2090
Fork height when mast retracts	h13(mm)	35	35	40
Fork tilt,forward / backward	°	3/5	3/5	3/5
Overall length	L(mm)	2205	2205	2305
Body length	l2(mm)	1670	1670	1855
Overall width	b1(mm)	1090	1090	1090
Fork size	s/e/l(mm)	35/100/1070	35/100/1070	40/122/1070
Fork adjustment range	b5(mm)	210-705	210-705	210-705
Reach distance	l4(mm)	600	600	650
Minimum ground clearance (wheelbase center)	m2(mm)	75	75	75
Width of stacking channel	Ast(mm)	2610	2610	2795
Minimum turning radius	Wa(mm)	1597	1597	1782
Driving speed, no load / full load	km/h	5/4	5/4	5/4
Lifting speed, no load / full load	m/s	0.135/0.115	0.135/0.110	0.135/0.100
Lowering speed, no load / full load	m/s	0.085/0.120	0.085/0.132	0.085/0.140
Maximum climbing capacity, no load / full load	%	8/6	8/6	8/6
Braking		Electromagnetic	Electromagnetic	Electromagnetic
Drive motor	kw	2.5	2.5	2.5
Lifting motor	kw	3	3	3
Battery type		Lead acid	Lead acid	Lead acid
Battery voltage / capacitance	V/Ah	24V280Ah	24V280Ah	24V280Ah
Drive control mode		AC	AC	AC
Driver's ear noise level according to EN12053	dB(A)	75	75	75

1. CURTIS controller, precise operation, maintenance-free,safe and reliable;
2. Vertical AC drive system, maintenance-free, safe and reliable;
3. 48V/400Ah industrial battery, large capacity, suitable for medium and high using frequency;
4. High performance hydraulic station, low noise, smooth operation, high efficiency;
5. Ergonomic handle design, buttons are easy to operate; suitable for left and right hand operation, better driving comfort;
6. EPS, labor saving; emergency reverse button, safer and more user-friendl;
7. Automatic deceleration when the fork is high, safe operation;
8. Full series of door frame can meet various needs of customers;
9. Fork with tilt function, more convenien;
10. Roof guard, headlight, etc.(Optional).

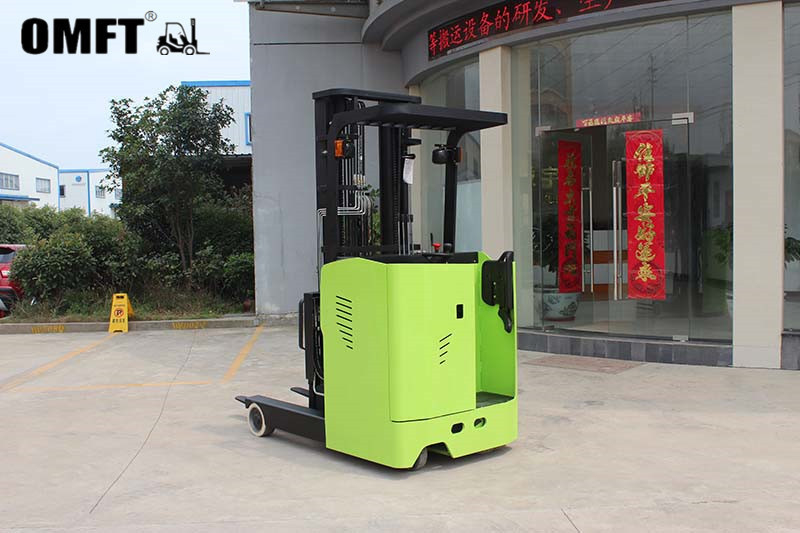

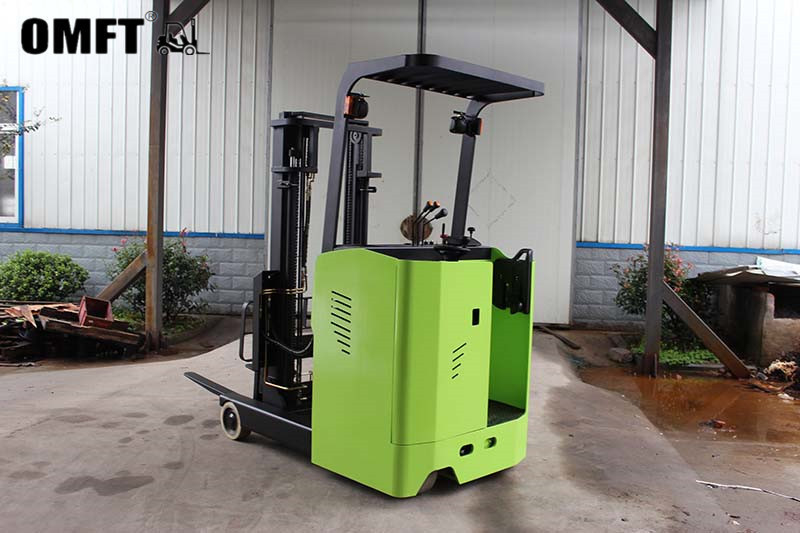

Electric Reach Truck 24V with Battery and Free Charger 3m 3.5m 4m 4.5m 5m 5.5m 6m Mast 4

WHY CHOOSE US?
1.Strong production, research and development, after-sales capacity
We have 35, 000 square meters workshop and 100 R&D staff. We have been specializing in the forklift industry for more than 20 years. 20,000 units production capacity per year. OEM is also welcomed.

2.High quality source of raw materials and spare parts
Our spare parts and steel are all from well-known manufacturers at home and abroad with reliable quality. Besides, we are very professional in painting, welding and other production processes. Our products are both excellent in appearance and internal structure.

3.Competitive price and fast delivery
For standard forklift, normally we have them in store. If not, we can finish production within 1 week. Even for high mast and other non-standard forklift,we can finish production within 2 weeks. Our price is transparent and competitive. We are not the cheapest in the market, but we ensure you that our products worth every penny.

4.Professional technical guidance and use training
We have detailed operation instructions and video instructions for each product. If you have any question during the use, please feel free to contact us. We have professional personnel to answer them one by one.

5.Warranty and after-sales service
2000h or 2 years warranty time. Free parts change during warranty time.
Strict quality testing was conducted for each truck before shipping to ensure the safety of users.
In order to ensure our customer has a good using feeling, we send some spare parts for free with every forklift, eg: filters, seal, cylinder, etc.
In future, if customers need any spare parts, we will arrange shipping within 48h.

6.Complete product line
Diesel Forklift:1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 3.8ton; 4ton; 4.5ton; 5ton; 6ton; 7ton; 8ton; 10ton; 12ton; 14ton; 15ton;16ton; 25ton; 28ton; 33ton; 42ton;45ton;48ton.
LPG&Gasoline Forklift :1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton; 7ton.
Electric Forklift: 1ton; 1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton.
Warehouse and material handling equipment: Manual hand pallet truck; electric pallet truck; electric pallet stacker; electric reach stacker; VNA(very narrow aisle) 3way or 4ways stacker; tow tractor; AGV equipments
Aerial platform:Scissor lifting platform 3.9M; 5.8M; 8M;10M;12M;14M
Rough terrain Off-road forklift and side forklift truck: 2ton to 12 ton

7.Logistics
It doesn't matter whether you have import qualification or not, we can solve the logistics problem for you. We have reliable logistics team and can send the goods directly to your warehouse if you need.
Also, we can do FOB, CIF and FCA term as you required.

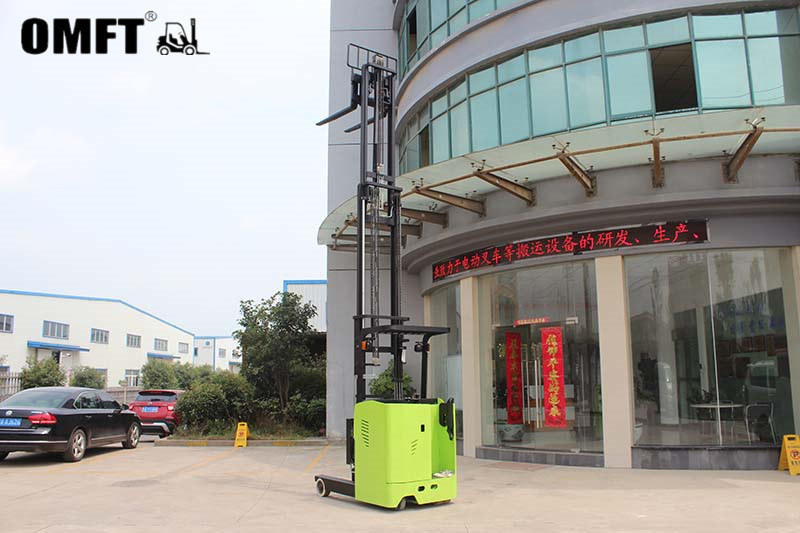

Electric Reach Truck 24V with Battery and Free Charger 3m 3.5m 4m 4.5m 5m 5.5m 6m Mast 5
